Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
Part Part no. Description
685011
Crankshaft repair kit (1x)
consisting of:
1 217431 Con rod (1x)
2 221162
Con rod pin (1x)
3 232884
Needle bearing (1x)
4 227731 Thrust washers (2x)

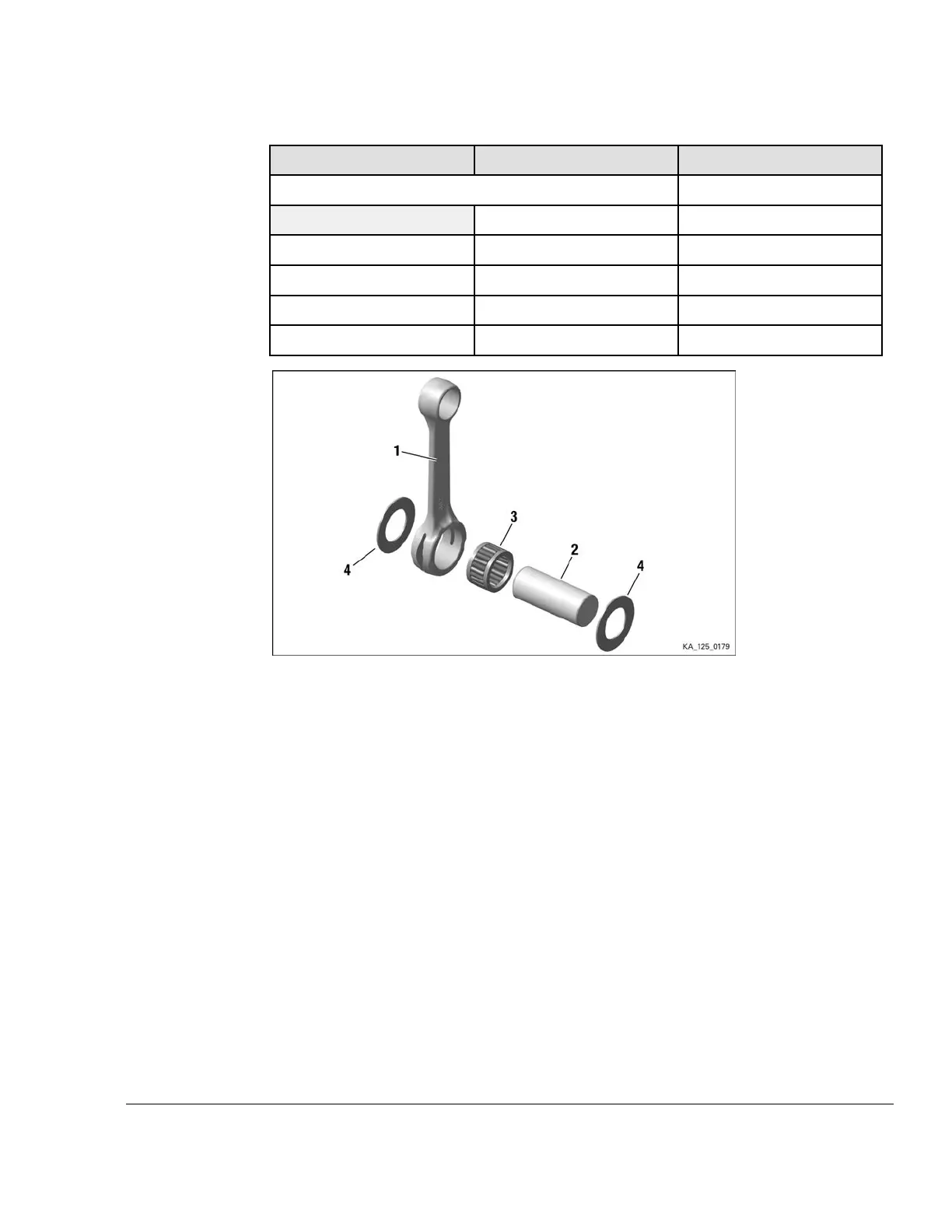

Figure 5.13: Con rod parts
1 Con rod 2
Con rod pin
3
Needle bearing
4
Thrust washer (2x)
______________________________________________________
Instructions See Figure: Disassembling of the crankshaft.
NNOOTTEE
Position the con rod above the bore of the bottom of the crankshaft repair jig. Oth-
erwise the con rod pin, the crankshaft half or the bottom section may be
damaged.
1. Push thrust plate (2) between the two halves of the crankshaft.
2. Position the crankshaft on the thrust plate (3) on bottom section of the tool (4) and make sure
that the crankshaft matches the bore in the bottom section at the crankshaft repair jig (4).
3. Position the thrust pin (5) on the connecting rod pin and press the crankshaft apart.
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 5
Page 17
