Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
REMOVAL OF THE BOWDEN CABLE
Instruction Proceed as follows to remove the Bowden cable:
1. Remove the carburetor cover (1).
2. Release the nipple screw from the slide.
3. Disconnect the Bowden cable (2) from the nipple screw (3).

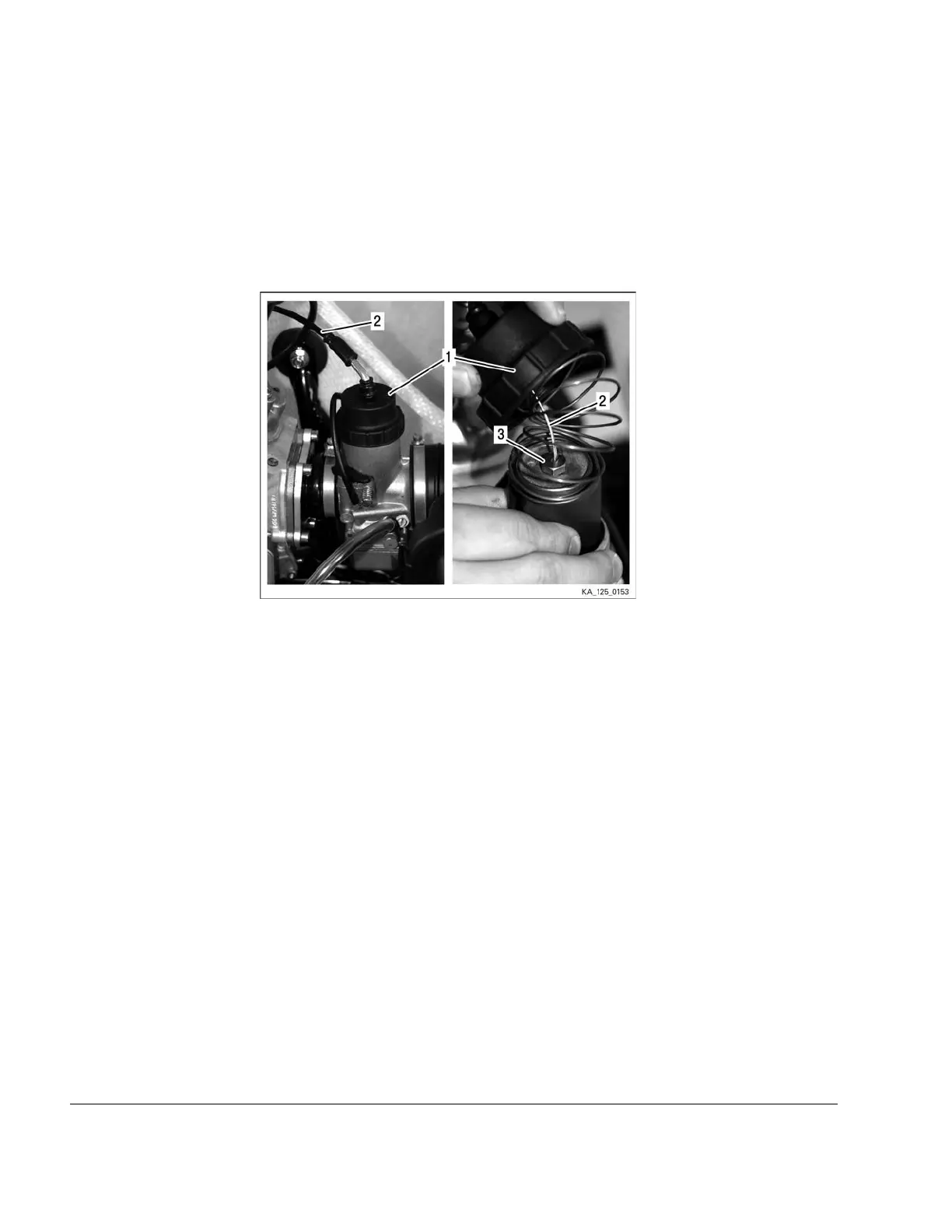

Figure 3.5: Bowden cable
1 Carburetor cover 2 Bowden cable
3
Nipple screw
______________________________________________________
REMOVAL OF THE ENGINE FROM KART CHASSIS
General Loosen the engine from chassis following the chassis manufacturer's instruction.
Remove both screws (engine clamps) and disconnect all cables.
NNOOTTEE
The engine mmuusstt nnoott be removed from the chassis to repair the following parts:
• Centrifugal clutch
• Cylinder with combustion chamber insert and cylinder head cover
• Exhaust valve
• Reed valve
• Piston
• Starter
• Oil Service
Chapter 3
Page 8
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
