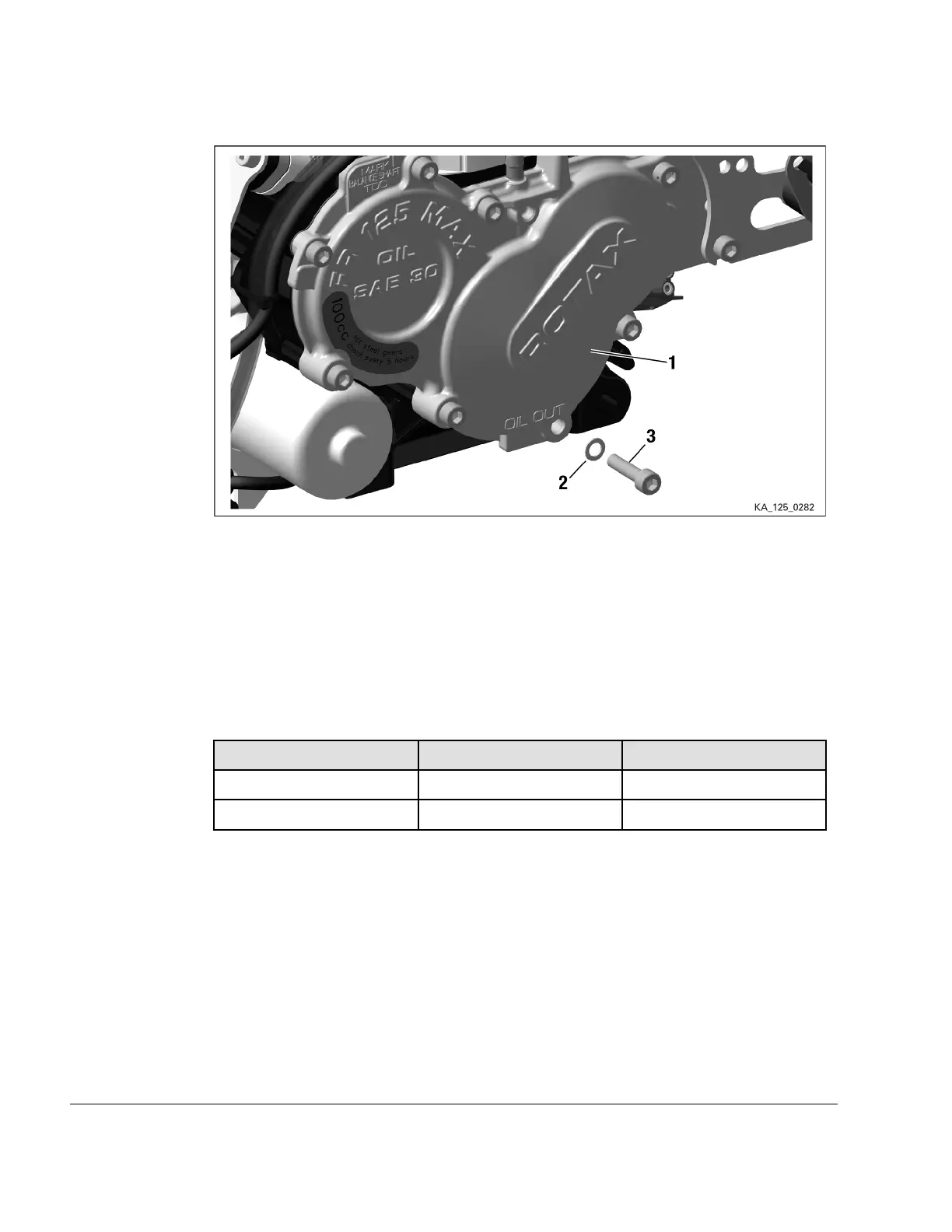

Figure 5.3: Drain oil
1 Gearbox cover 2
Sealing ring A6x10
3 Allen screw M6x25
______________________________________________________
REMOVE WATER PUMP AND COMPENSATING WHEELS
Special tools The following special tools and equipment are required:
Part no. Description Use
n.a.
Circlip pliers
Drive wheel
n.a.
Hot-air gun
Compensating wheels
Instructions See Figure: Gearbox cover.
1. Unscrew and remove Allen screws (1).
2. Remove gear cover (3) with gasket (4).
Chapter 5
Page 6
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
