BRP-Rotax
REPAIR MANUAL

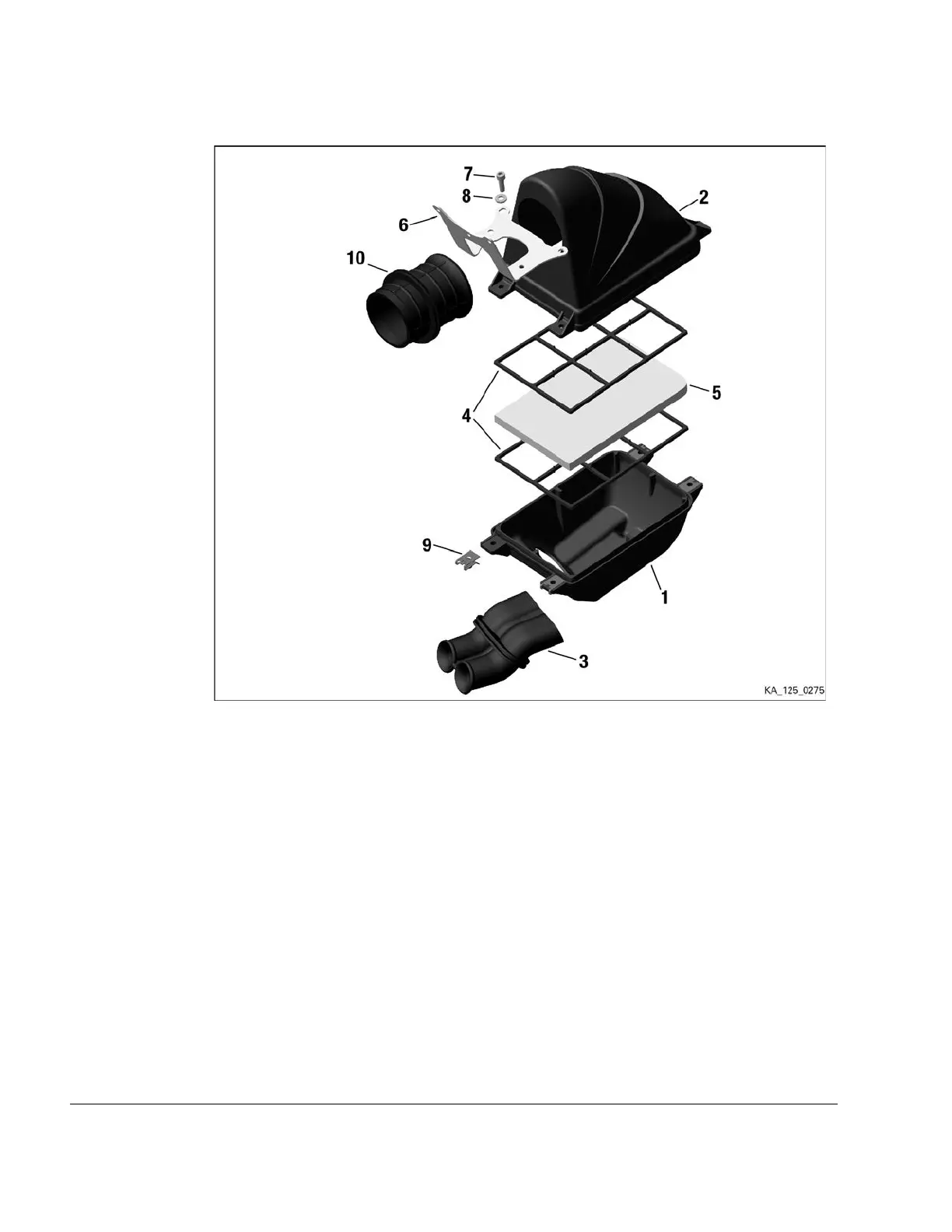

Figure 6.8: Intake silencer
1 Intake silencer case 2 Intake silencer cover
3 Intake silencer tube 4
Filter element support/holder
5 Filter element 6
Support bracket
7 Washer 6.4 8 Allen screw M6x20
9 Nut M6
______________________________________________________
Chapter 6
Page 10
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
