REPAIR MANUAL
DISASSEMBLY OF THE INTAKE SILENCER
Intake silencer See Figure: Intake silencer.
1. Disassemble the intake silencer to the parts shown in following Figure.

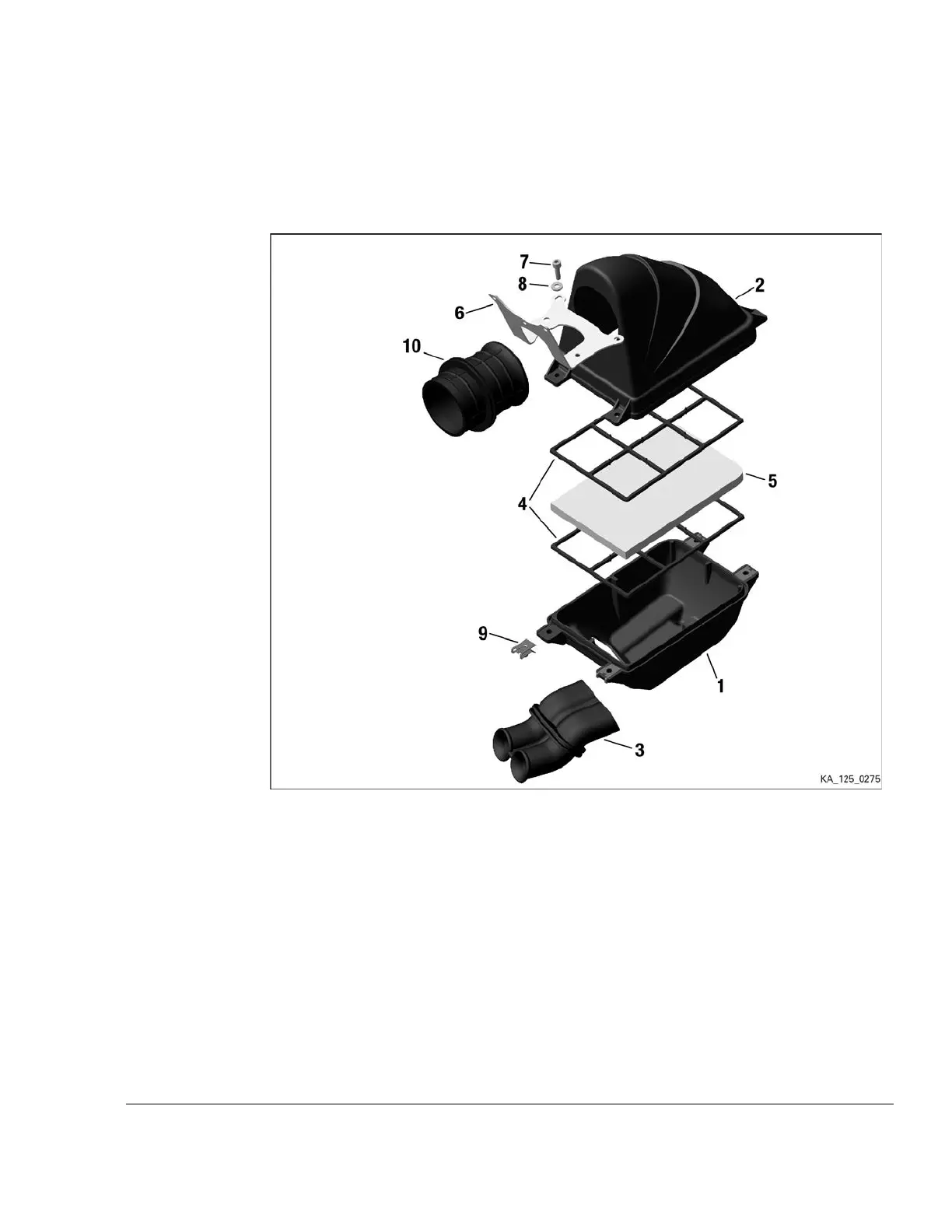

Figure 6.5: Intake silencer
1 Intake silencer case 2 Intake silencer cover
3 Intake silencer tube 4
Filter element support/holder
5 Filter element 6
Support bracket
7 Washer 6.4 8 Allen screw M6x20
9 Nut M6
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 6
Page 7
