BRP-Rotax
REPAIR MANUAL
REMOVAL OF THE CLUTCH AND STARTER GEAR ASSY.
REMOVAL OF THE CENTRIFUGAL CLUTCH ASSY.
Safety
instructions
m WARNING
Danger of severe burns and scalds! Always allow the engine to cool down to am-
bient temperature before starting any work.
m WARNING
Danger of explosion and ignition!
Overflowing and split gasoline must be absorbed immediately with a binding agent and
correctly disposed of. Do not work with open flames and sources of ignition. Fuel must
not be allowed to come into contact with hot engine parts and components.
REMOVAL OF THE ELECTRIC STARTER
Instruction See Figure: Electric starter
1. Disconnect electrical connection from the starter.
2. Remove the electric starter (1) completely by unscrewing 2 Allen screws M6x35 (3) from the
crankcase and gearbox case.

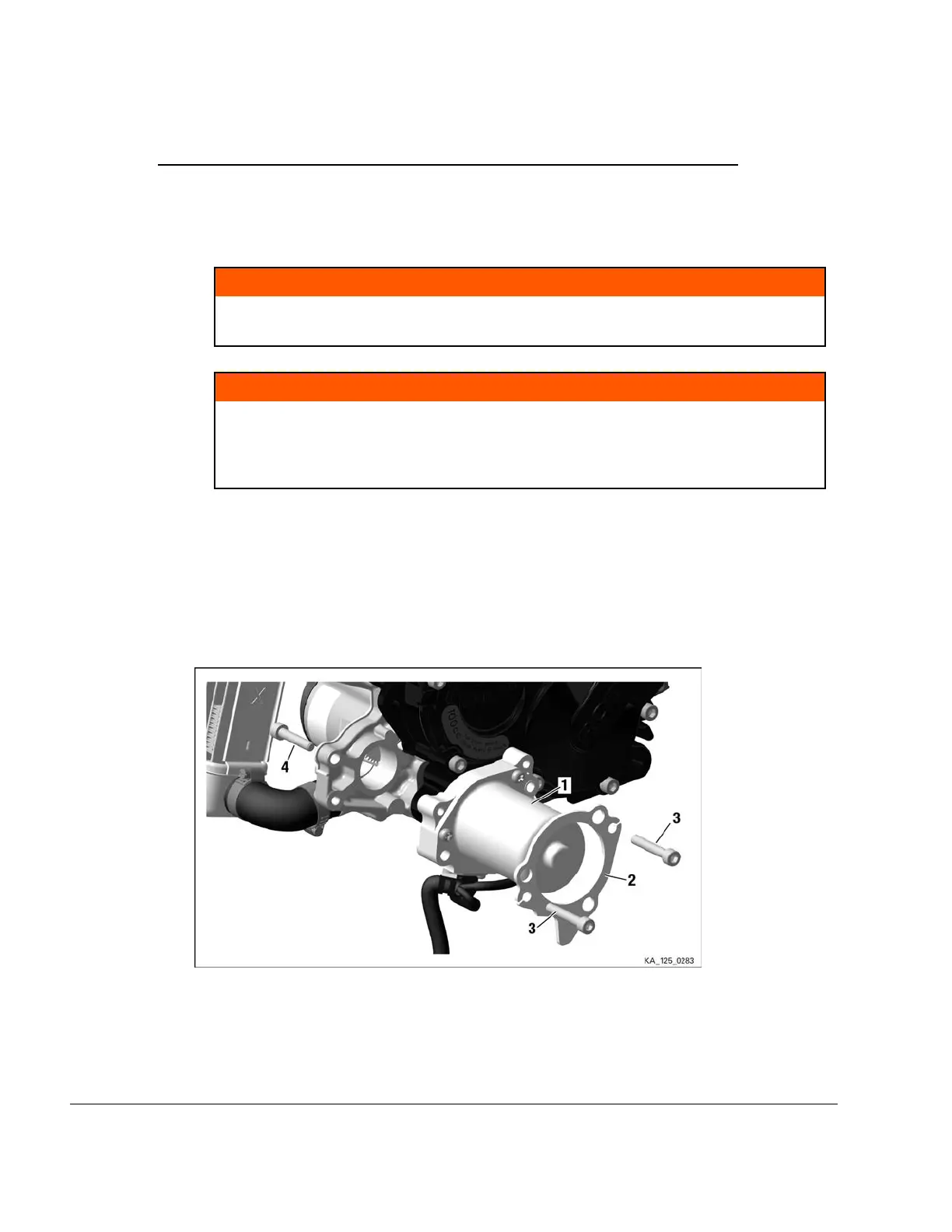

Figure 7.3: Electric starter
1 Electric starter 2
Starter support
3 Allen screw M6x35 4 Allen screw M6x30
Chapter 7
Page 4
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
