Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

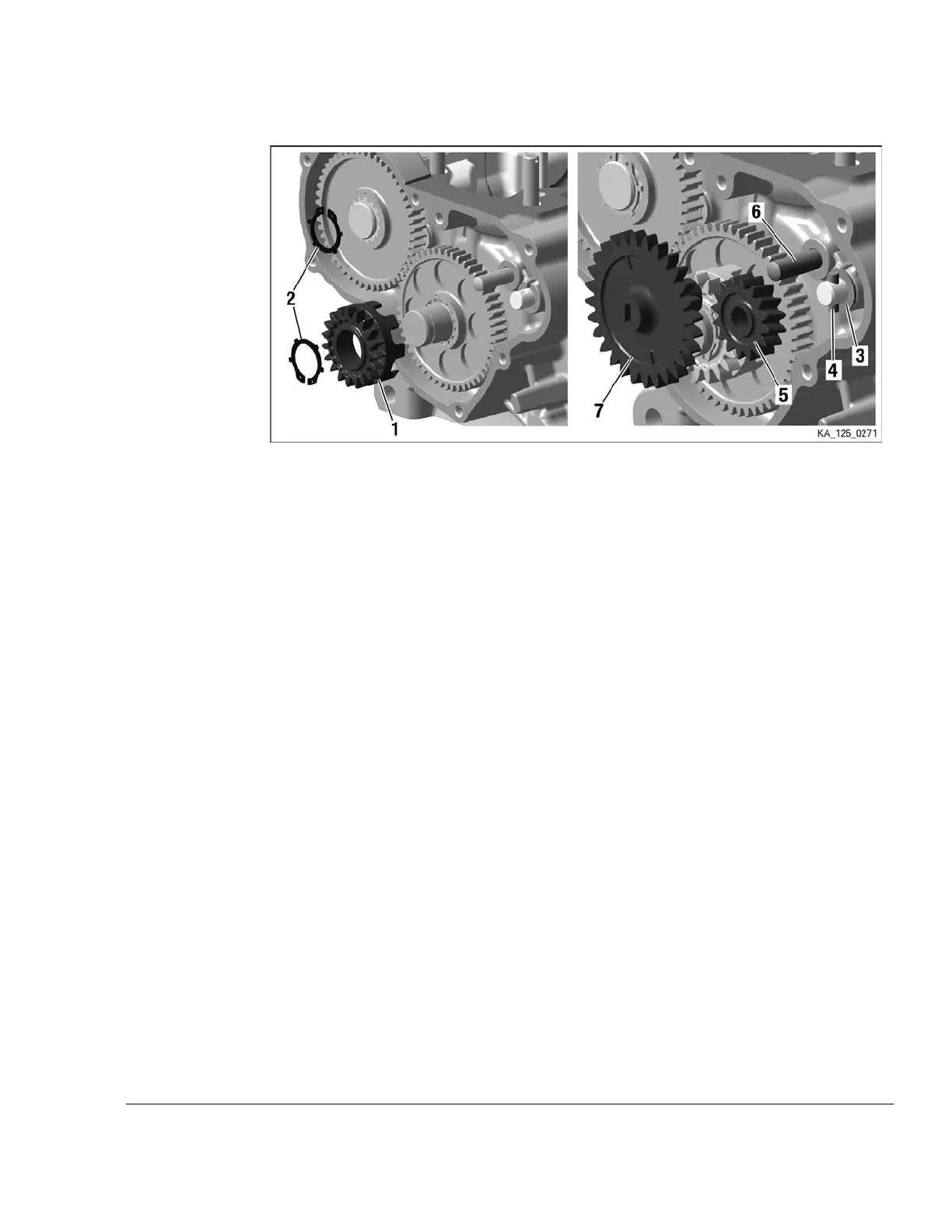

Figure 5.34: Idle gear
1
Water pump gear 19 T
2
Retaining ring with lug 20x1.2
3 Thrust washer 10.1/17/1 4
Needle pin 4x15.8
5
Water pump pinion 16 T
6
Locating pin 8 small M6x40
7
Idle gear 28/13 T
______________________________________________________
10. Position new gasket (1) on the case.
11. Screw on gear cover (2) with 6 Allen screws M6x25 (4) with sealing ring A 6x10 (3) and 2 Al-
len screws M6x30 (5). Tightening torque 10 Nm (90 in. lb).
NNOOTTEE
Use sealing ring A6x10 to seal the oil drainage plug and oil level plug.
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 5
Page 39
