Rotax 125 MAX evo - Exhaust System Overview

BRP-Rotax
REPAIR MANUAL
SYSTEM DESCRIPTION

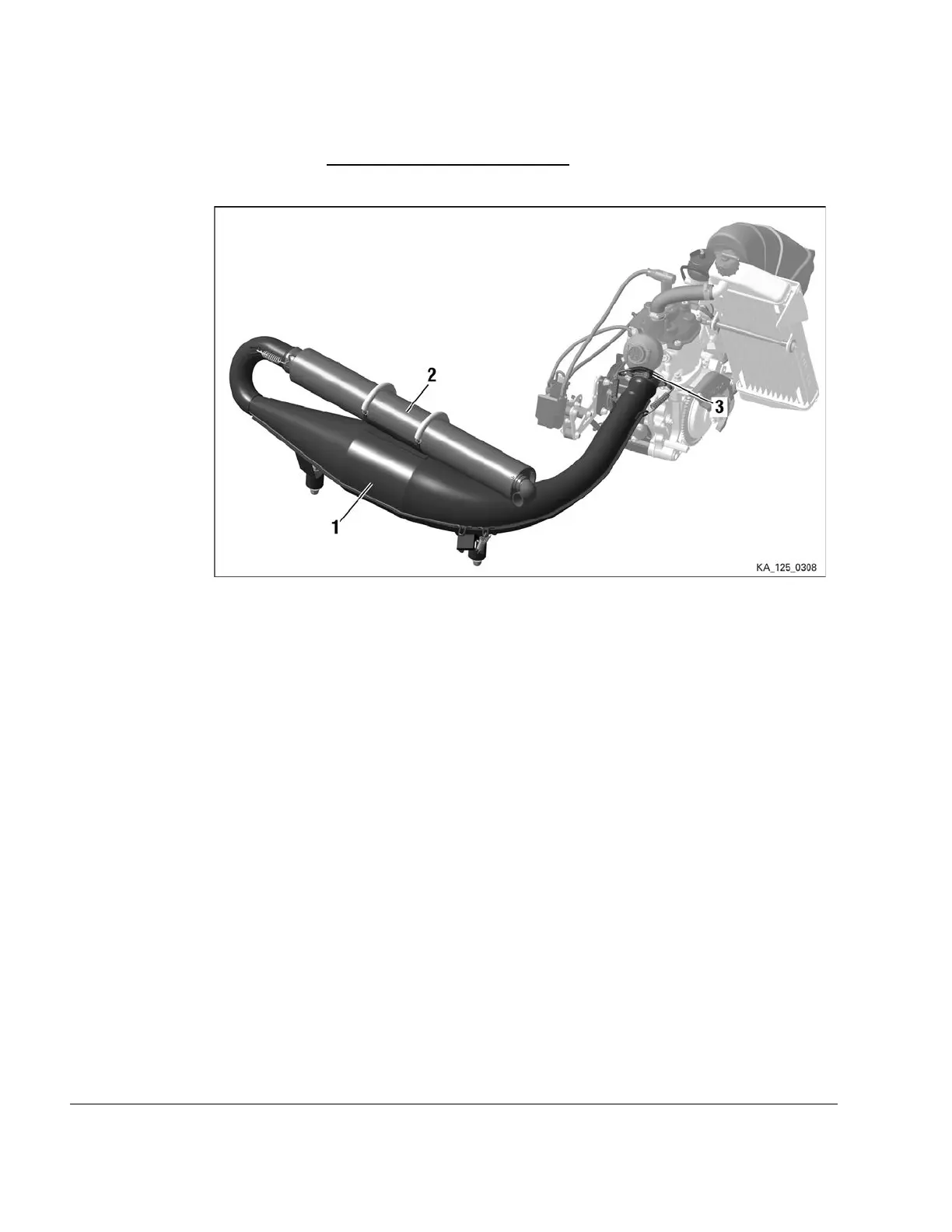

Overview Position on the engine
Figure 9.1
1
Exhaust muffler assy.
2
Silencer assy.
3
Exhaust socket assy.
______________________________________________________
Chapter 9
Page 2
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
