Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

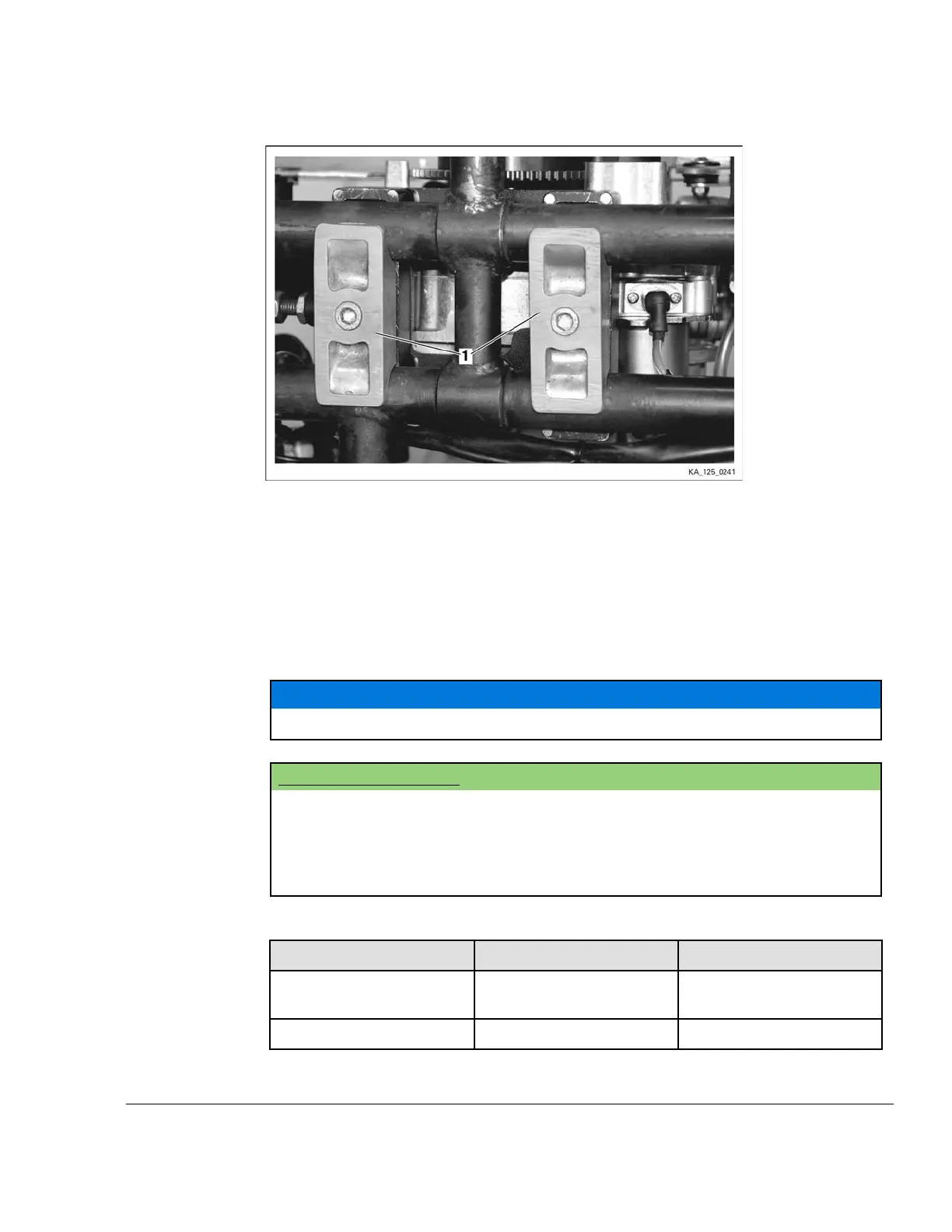

Figure 3.6: Engine clamp (Illustration similar)
1
Engine clamp
______________________________________________________
POSITIONING THE ENGINE ON THE TRESTLE MOUNTING PLATE
General
ATTENTION
Do not use flammable liquids and aggressive cleaning agents to clean the engine.
ENVIRONMENTAL NOTE
Generally comply with standard rules for handling of chemicals. Dispose of
chemicals as per local environmental regulations.
Cleaning the engine removes fuel and oil residues and other environmentally damaging
substances. The waste liquid must be caught and disposed in an environmentally com-
patible method.
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
877390 Trestle mounting plate
(trestle support)
Engine
676052
Fixing plate for engine
Engine
Instructions Proceed as follows to position the engine on the trestle mounting plate:
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 3
Page 9
