Rotax 125 MAX evo - Installation of the Exhaust System; Exhaust System View

BRP-Rotax
REPAIR MANUAL

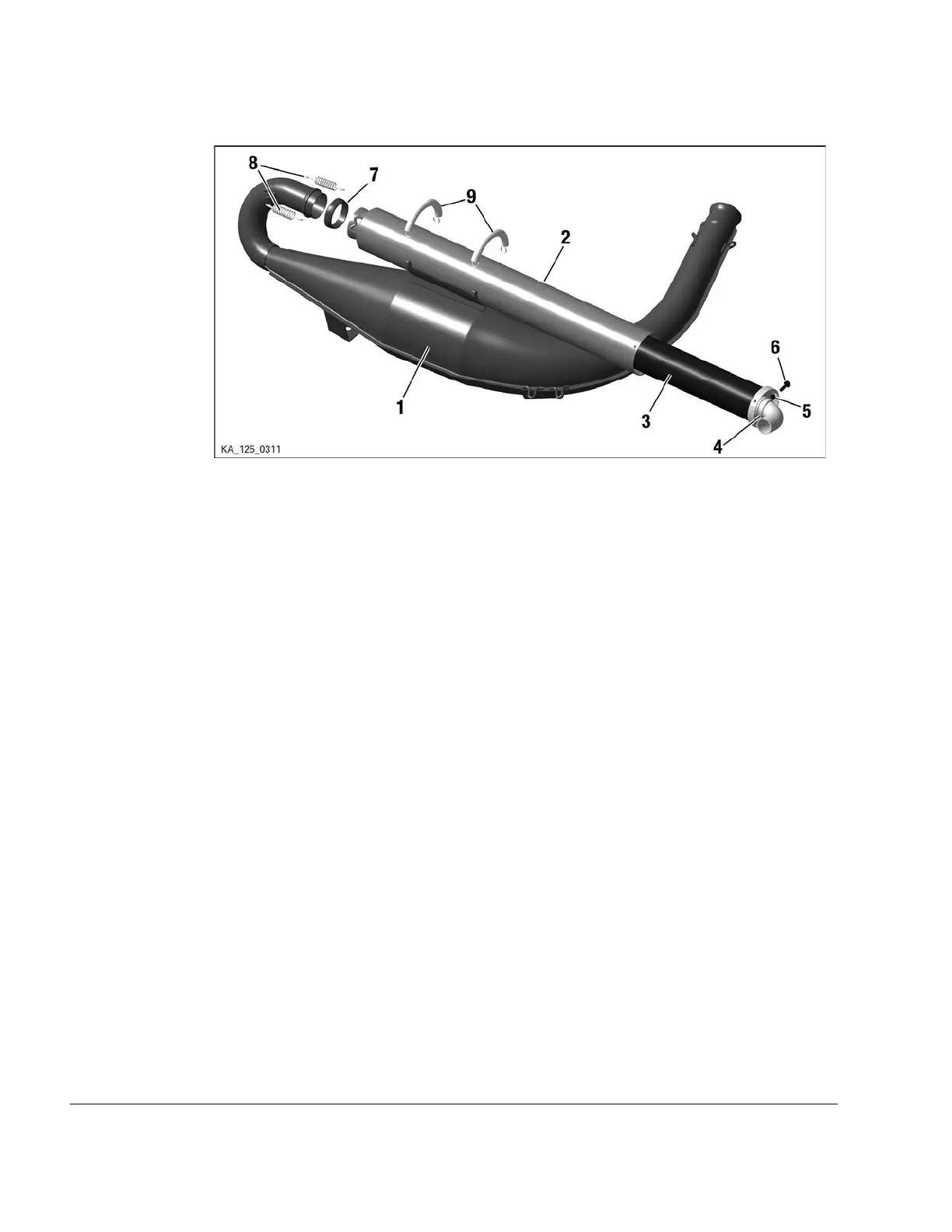

Figure 9.4: Exhaust system
1
Exhaust muffler assy.
2
Silencer assy.
3
Isolating mat
4
Perforated tube assy.
5 Lock nut M4 6 Allen screw M4x12
7
Exhaust gasket
8
Spring stainless
9
Tension spring
______________________________________________________
INSTALLATION OF THE EXHAUST SYSTEM
Instructions For installation of the exhaust system, see latest Installation Manual for the engine type
125 MAX evo.
Chapter 9
Page 6
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
