Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

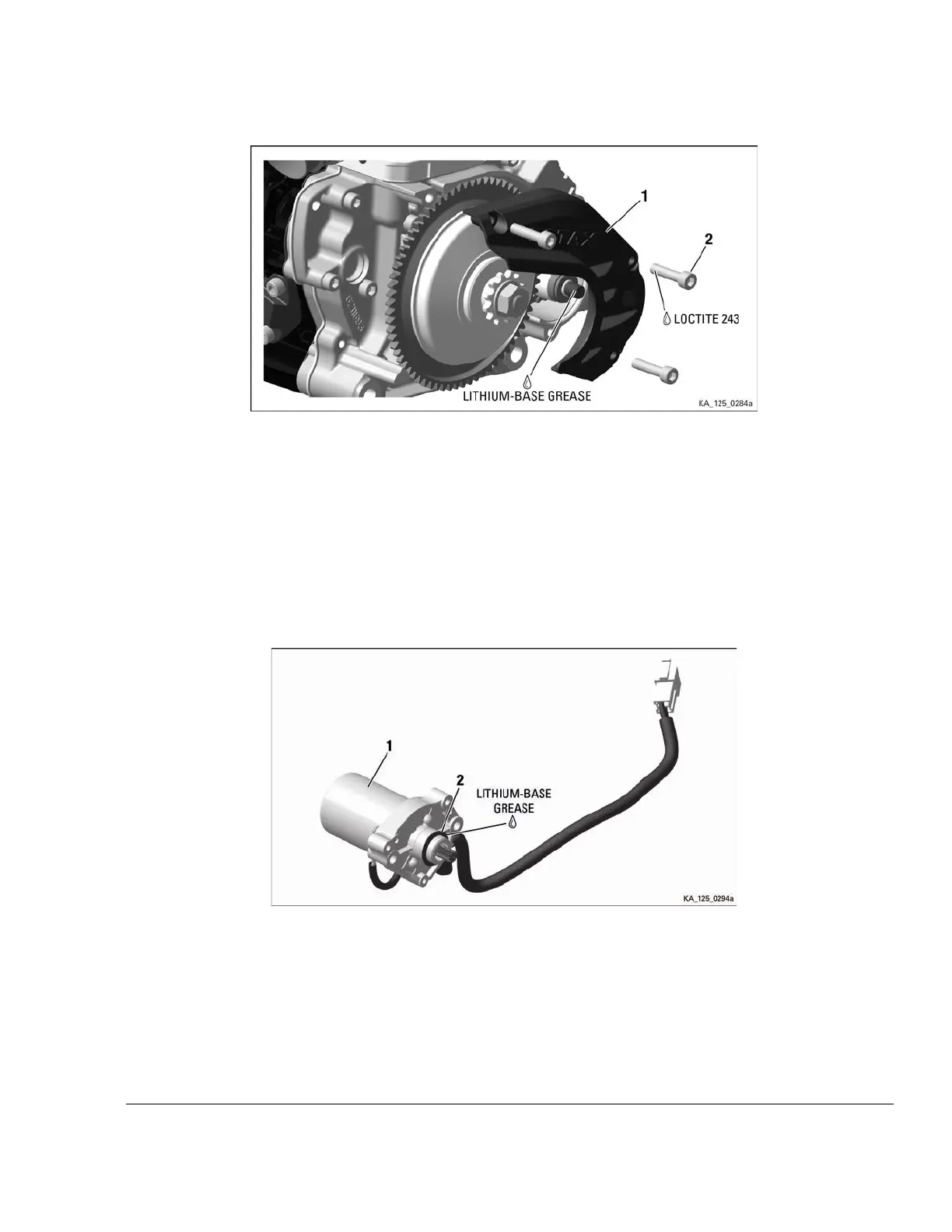

Figure 7.23: Chain protection
1
Chain protection
2 Allen screw M6x25
______________________________________________________
INSTALLATION OF THE ELECTRIC STARTER
Instructions
1. Lubricate O-ring (2) on the center of the electric starter (1).
Figure 7.24
1 Electric starter 2
O-ring
______________________________________________________
2. Install starter support (2) with electric starter (1) using 2 Allen screws M6x35 (5). Tightening
torque 10 Nm (89 in. lb).
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 7
Page 23
