INSPECTION OF COOLING SYSTEM
RADIATOR – INSPECTION OF COMPONENTS
Instruction See Figure: Radiator.
NNOOTTEE
If some of the cooling fins are slightly bent, they may be gently bent back into
shape.
1. Use compressed air to remove dirt from the cooling fins of the radiator. Never use a high-
pressure cleaner.
2. Visual check of the radiator assy. for any cracks or other damage.
3. Check that the radiator cap gasket is in perfect condition.
4. Check the cooling water hoses for porosity and leakage.
5. Check the radiator's windshield for cracks and damage (visual check).
6. Check the rubber grommets for wear and cracks.

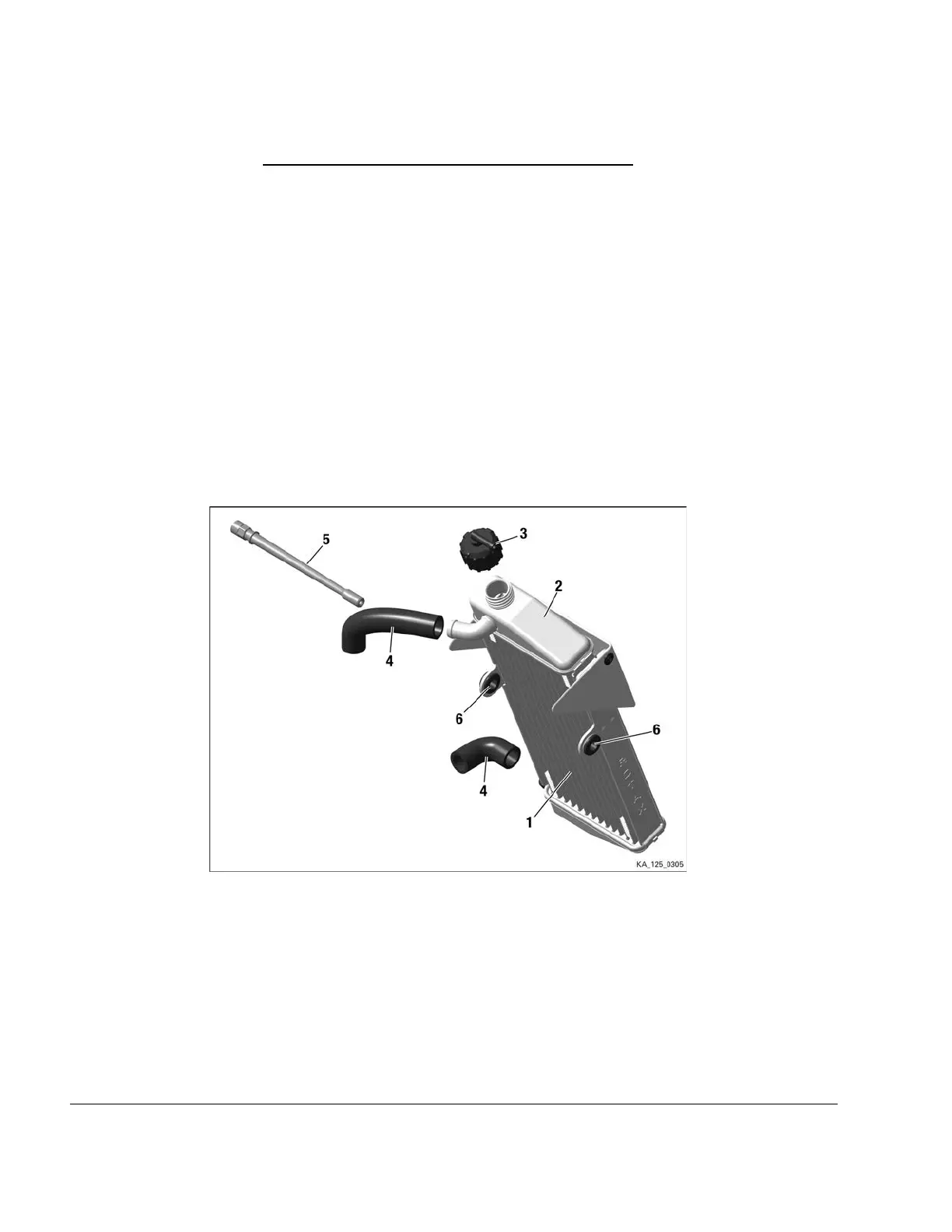

Figure 8.4: Radiator, typical
1
Cooling fins
2 Radiator
3
Radiator cap
4
Cooling water hose
5 Radiator bracket 6
Rubber grommet
______________________________________________________
Chapter 8
Page 6
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
