REPAIR MANUAL

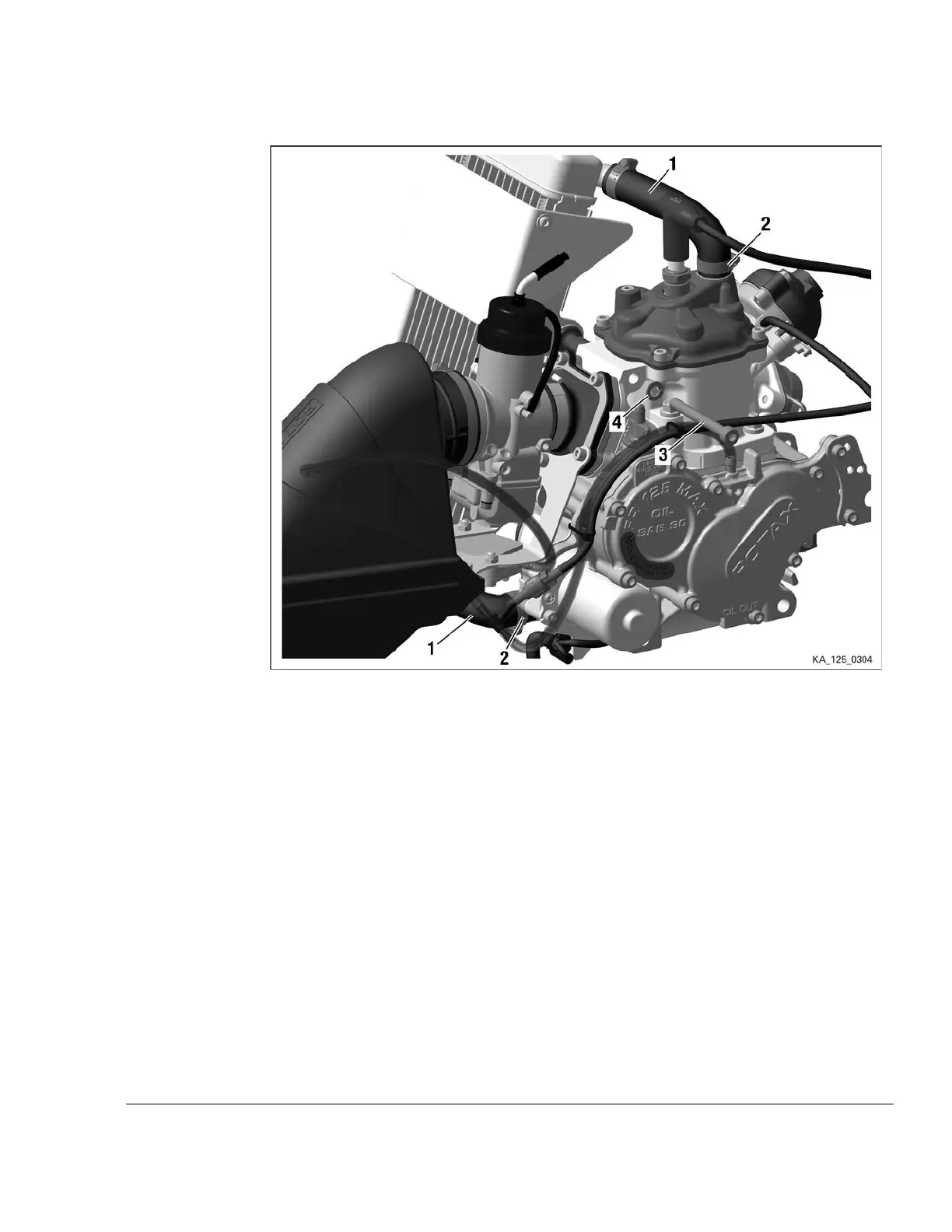

Figure 8.3: Cooling water hoses
1 Hoses 2
Hose clamps
3 Allen screw M8x75 4 Lock washer A8
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 8
Page 5
