Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

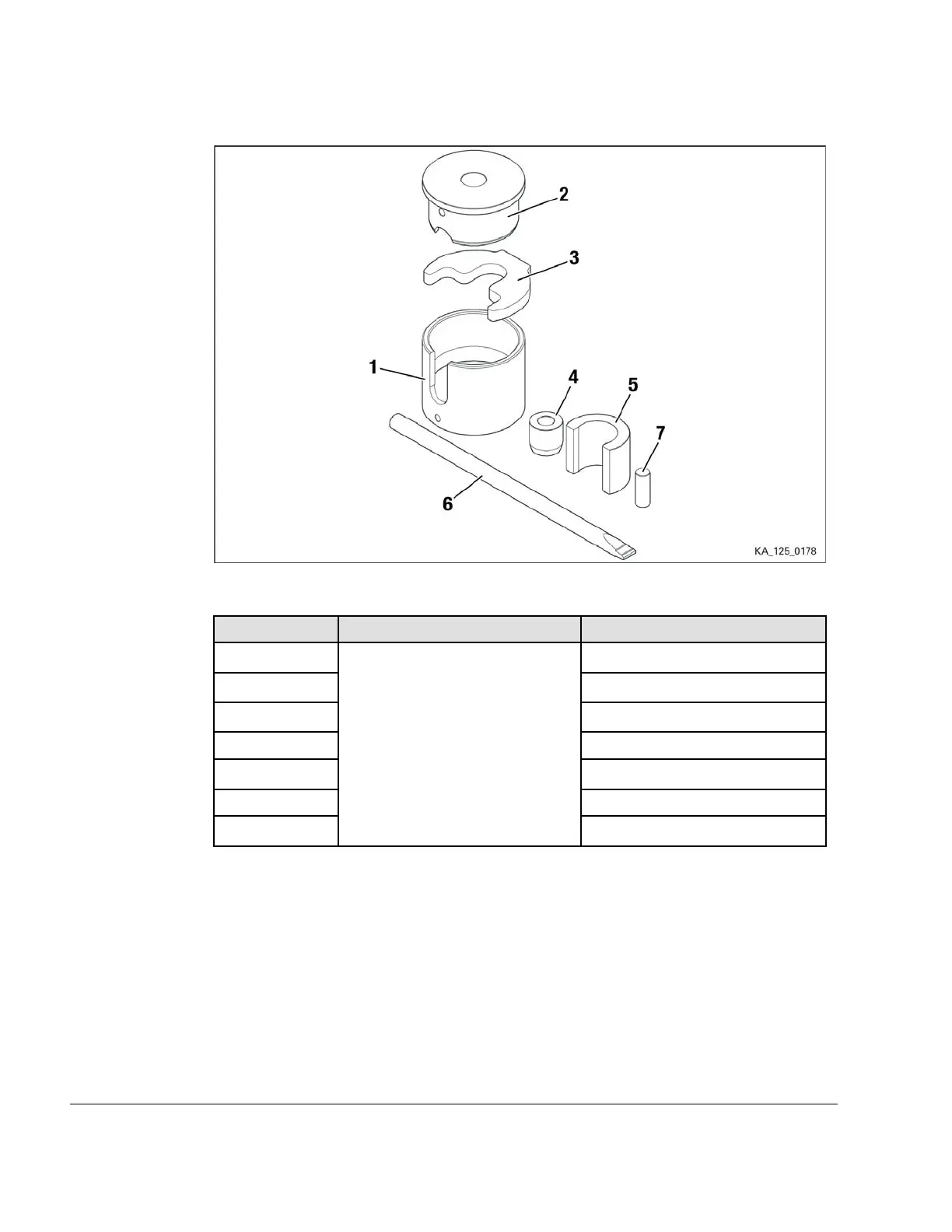

Figure 5.12: Crankshaft repair jig
Part Part no. Function
1
276051
Bottom section of the repair jig
2
Top section of the repair jig
3 Thrust plate
4
Sleeve
5
Thrust ring
6 Crowbar
7
Thrust pin/old piston pin
NNOOTTEE
Con rod parts are not part of the crankshaft repair jig (part no. 276051).
The crankshaft repair kit (con rod) is available at your ROTAX® Dealer.
Chapter 5
Page 16
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
