Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
NNOOTTEE
Check that the circlip is correctly seated in the piston.

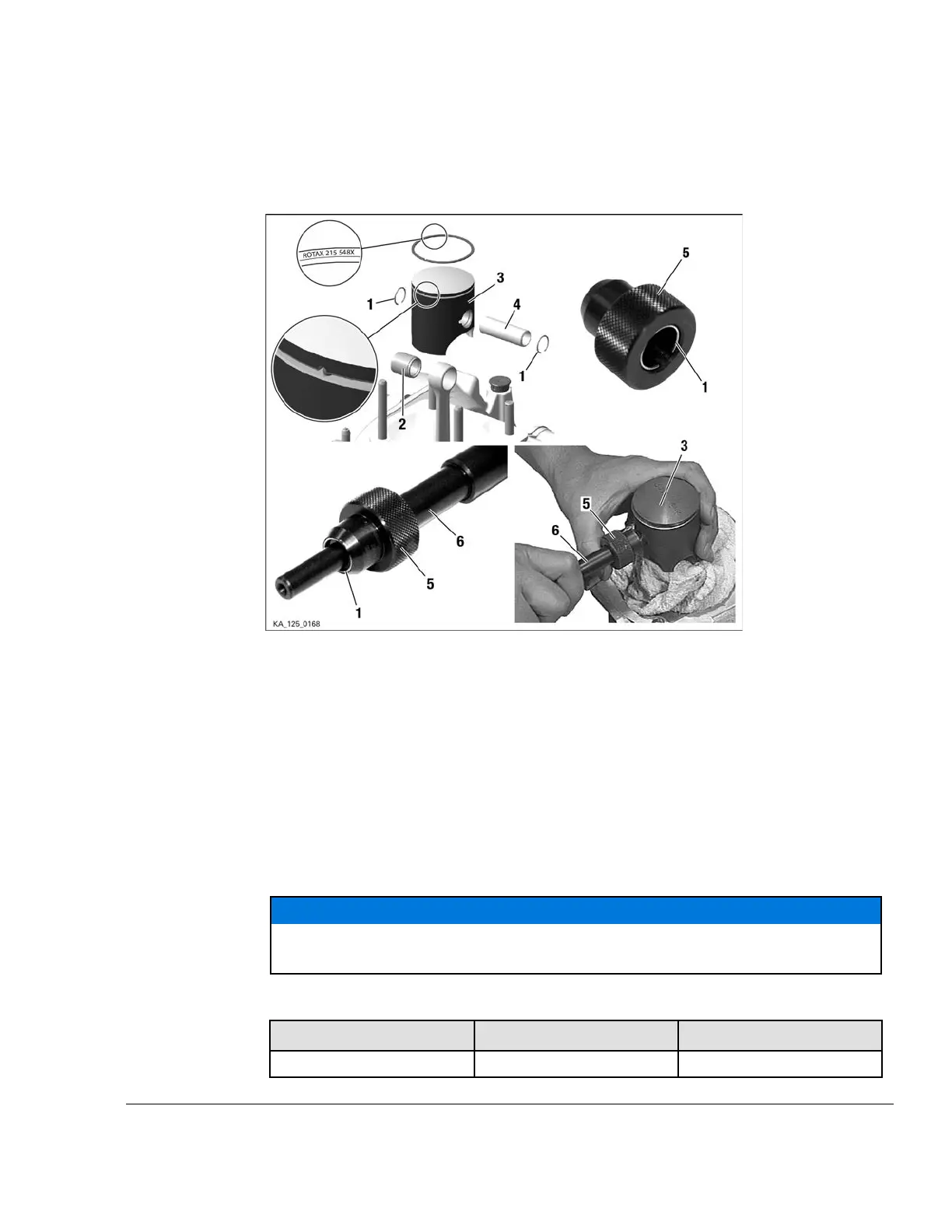

Figure 4.23: Piston pin
1
Circlip
2
Needle cage K 15x19x20
3 Piston 4
Piston pin 15x10x12.5x45.6
5
Mounting sleeve
6 Installation tool
______________________________________________________
INSTALLATION OF THE CYLINDER
General
ATTENTION
Use only the piston/cylinder pairings specified by the table in Chapter 4 Section
3.2. All other combinations may lead to engine damage.
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
897651
LOCTITE 243 Stud bolts
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 4
Page 25
