Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

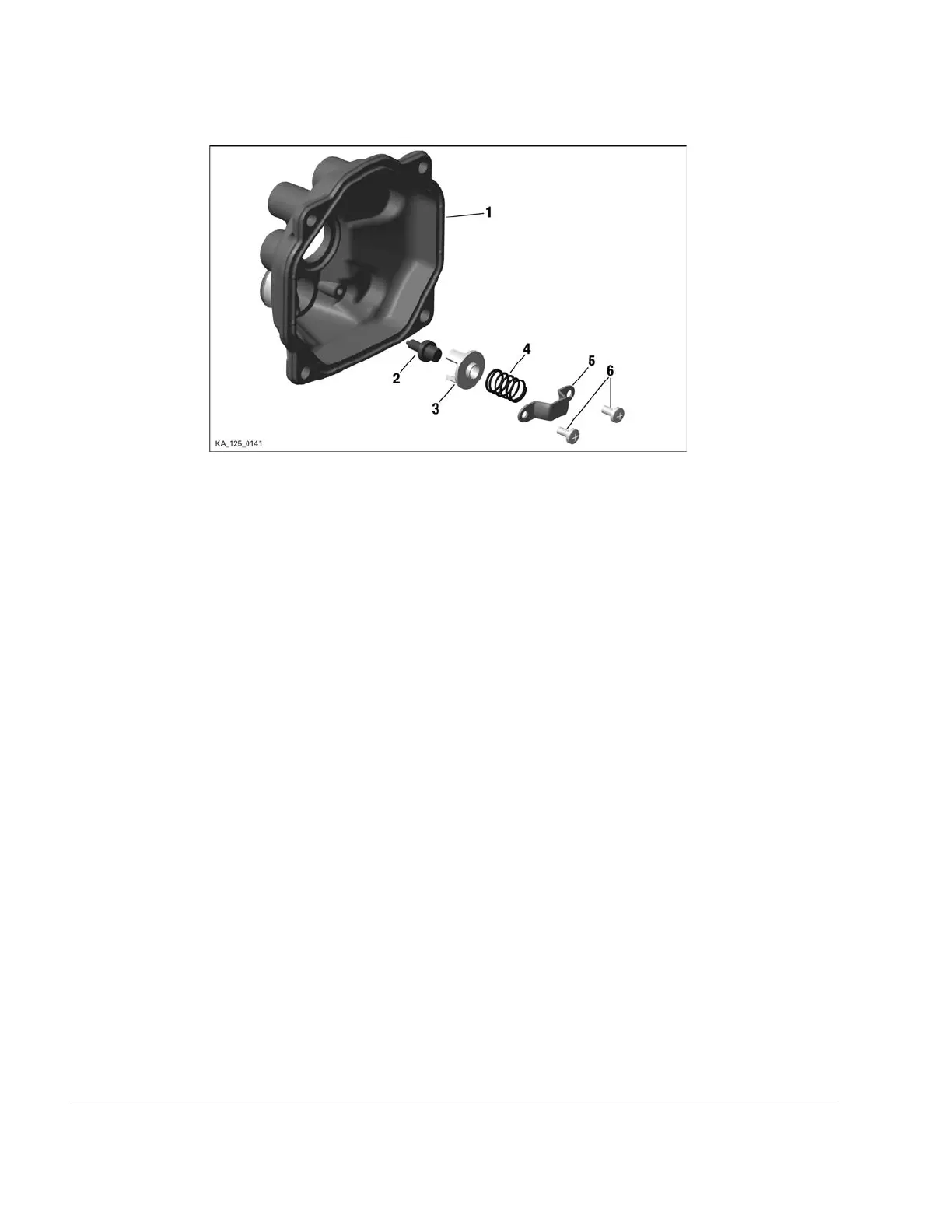

Figure 4.4: Thermostat
1
Cylinder head cover
2
Thermostat, 45 Degree celcius
3 Thermostat holder 4
Compression spring
5
Thermostat retaining bracket
6 TAPTITE screw M4x8
______________________________________________________
REMOVAL OF THE COMBUSTION CHAMBER INSERT
Instruction See Figure: Combustion chamber insert.
1. Remove the combustion chamber insert (1) by unscrewing the 5 Hex screws M8x30 (4) with
the lock washer (5) crosswise.
2. Lift away the combustion chamber insert with lower (2) and upper O-rings (3).
Chapter 4
Page 6
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
