Instruction See Figure: Balance shaft.
4. Remove gasket (2) from the case half (1).
5. Remove water-pump shaft (4).
6. Remove balance shaft (3) from the case.

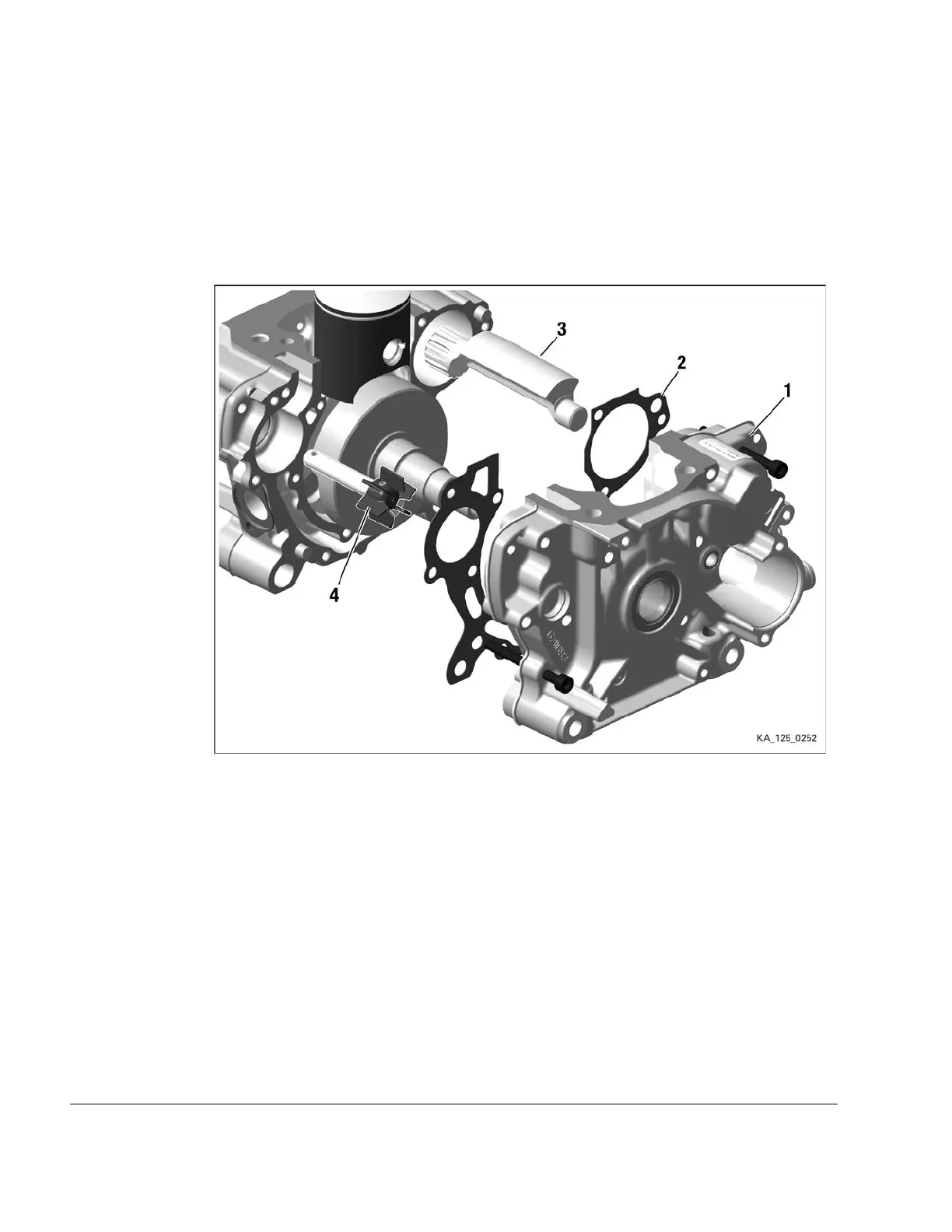

Figure 5.7: Balance shaft
1 Crankcase half 2 Gasket
3 Balance shaft 4
Water pump shaft
______________________________________________________
7. Gently tap the crankshaft (1) with the plastic hammer (3) to remove the crankshaft from the
case half (2).
