REPAIR MANUAL
Instruction See Figure: Cylinder. Proceed as follows to remove the cylinder:
1. Remove the cylinder with the socket set by unscrewing the four M8 collar nuts from the
crankcase.
2. Remove the cylinder (1) from the crankcase.
3. Remove the cylinder base gasket (2).

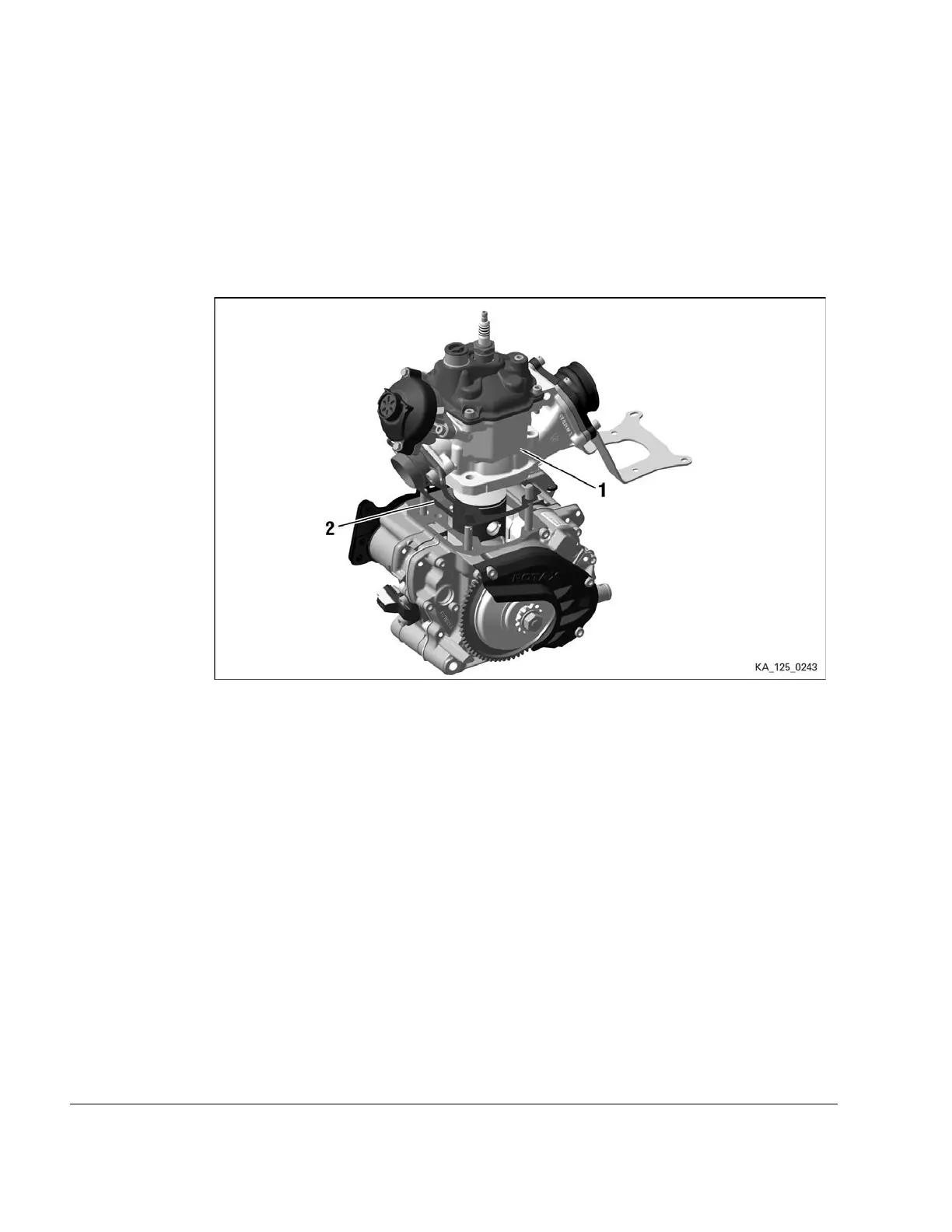

Figure 4.2: Cylinder
1
Cylinder
2 Gasket
______________________________________________________
REMOVAL OF THE SPARK PLUG
Instruction
1. Remove the spark plug connector.
2. Remove the spark plug with the spark plug socket.
REMOVAL OF THE CYLINDER HEAD COVER
Instruction See Figure: Cylinder head cover.
1. Remove the cylinder head cover (1) by removing the 3 Allen screws (M6x25) (3) and 1 Allen
screw M6x16 (4) from the cylinder.
2. Remove the cylinder head together with the gasket.
Chapter 4
Page 4
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
