REPAIR MANUAL
ASSEMBLY OF CRANKSHAFT, WATER PUMP SHAFT AND BALANCE SHAFT
Special tools The following special tools and equipment are required.
Part no. Description
Field of application
n.a.
Convection oven Case half
297434
LOCTITE Anti-Seize Balance shaft, crankshaft
Instruction See Figure: Crankshaft, Balancs shaft, Water pump shaft
1. Coat main bearing seats of the crankshaft (1) with LOCTITE Anti-Seize.
2. Insert the crankshaft assy. (1) as shown on the picture into the crankcase half.
3. Coat bearing seats of the balance shaft (2) with LOCTITE Anti-Seize.
4. Insert the balance shaft (2) as shown on the picture into the crankcase half.
5. Insert the water pump shaft (3) as shown on the picture into the crankcase half.
6. Position new gasket (4) as shown on the picture into the crankcase half.
NNOOTTEE
Adjustment of the clearance of the crankshaft is not required.

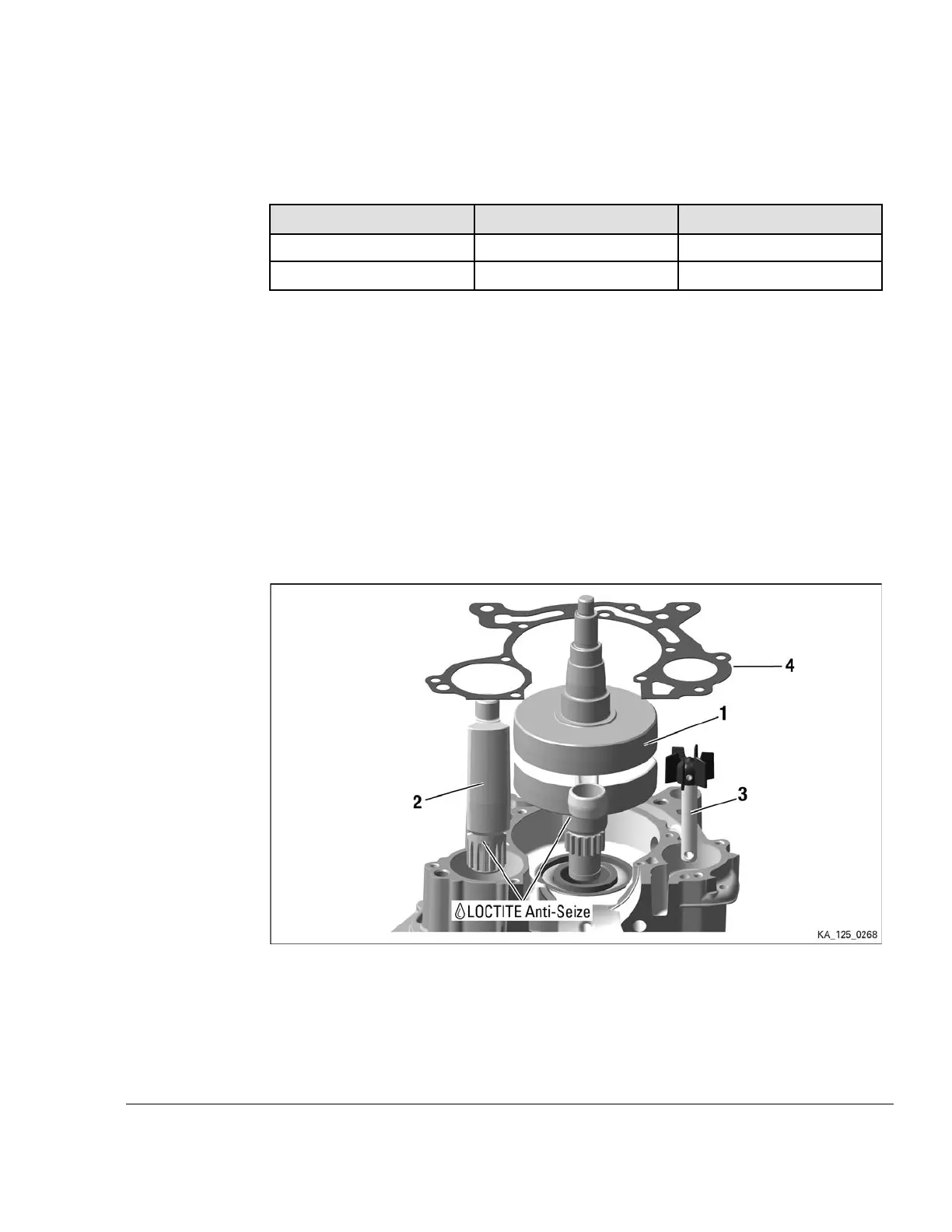

Figure 5.31: Crankshaft, Balance shaft, Water pump shaft
1
Crankshaft assy.
2 Balance shaft
3
Water pump shaft
4 Gasket
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 5
Page 35
