BRP-Rotax
REPAIR MANUAL
INSPECTION OF THE FUEL PUMP
General
NNOOTTEE
Only the complete membrane and gasket set of the fuel pump can be replaced.
Fuel pump gasket set: Part no. 296165
Instruction See Figure: Fuel pump.
1. Check the condition of the impulse pipe (1), fuel line (2) and fuel overflow line (3) and in case
of doubt replace them.

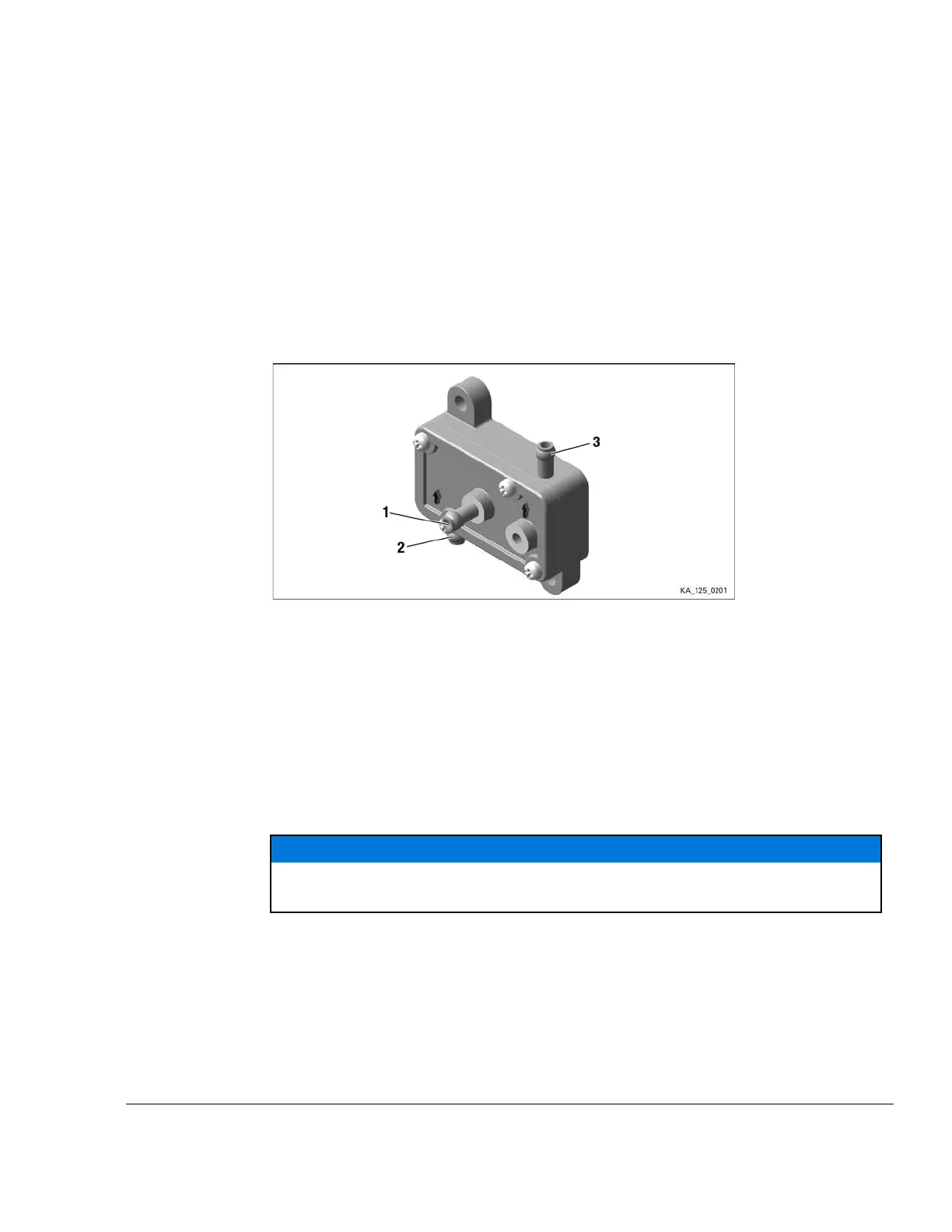

Figure 6.7: Fuel pump
1
Impulse pipe
2
Fuel line (from fuel tank)
3
Fuel line (to carburetor)
______________________________________________________
INSPECTION OF THE INTAKE SILENCER
General
ATTENTION
A damaged filter element must be replaced immediately. Otherwise dirt particles
can enter the intake and cause damage to the engine.
Instruction See Figure: Intake silencer.
1. Inspect the silencer case (1) and silencer cover (2) for cracks.
2. Inspect the intake silencer tube (3) and carburetor socket (10) for cracks or porosity.
3. Clean the filter element (5) with filter cleaner and oil it afterwards slightly with air filter oil.
4. Inspect the filter element (5) and filter element holders (4) for cracks.
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 6
Page 9
