REPAIR MANUAL

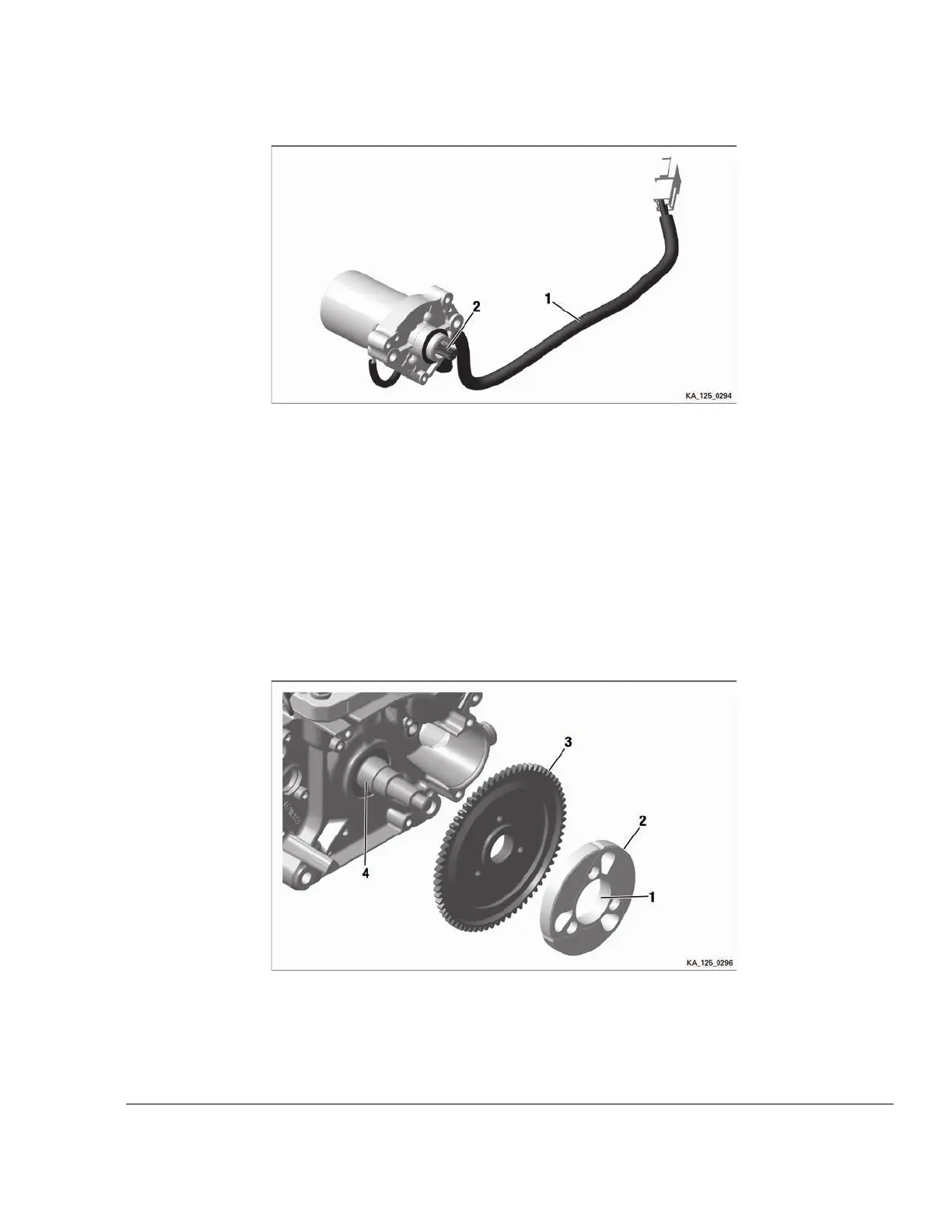

Figure 7.13: Electric starter
1 Starter cable 2 Teeth
INSPECTION OF THE CLUTCH AND STARTER GEAR ASSY.
Instructions See Figure: Clutch and starter gear assy.
1. Check the hole (1) in the clutch (2).
2. Check the teeth of the starter gear assy. (3) for damage or deformation.
3. Remove LOCTITE residue from the taper (4) of the starter gear assy.
Figure 7.14: Clutch and starter gear assy.
1 Clutch hole 2 Clutch
3
Starter gear
4
Taper
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 7
Page 13
