Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

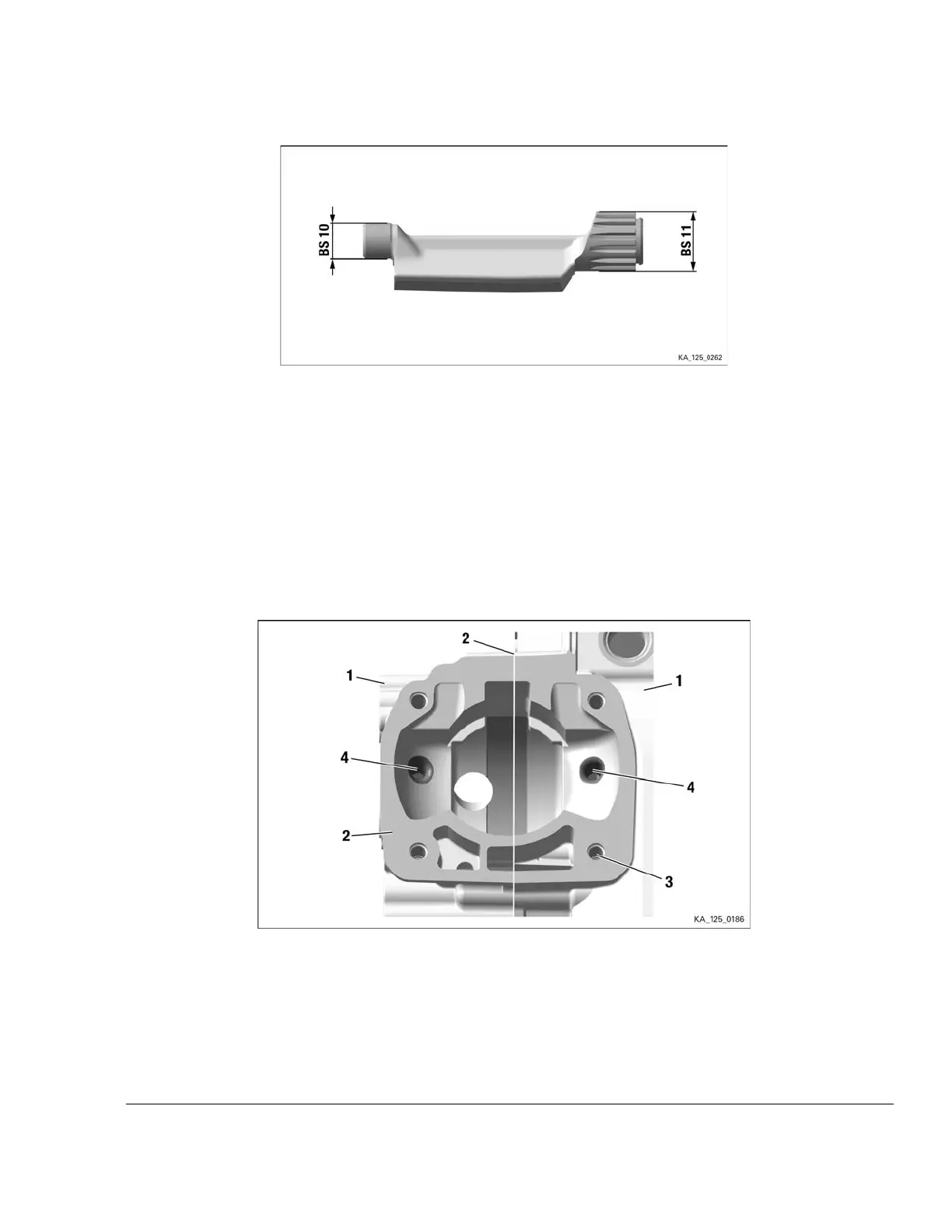

Figure 5.24: Balance shaft
INSPECTION OF THE HOUSING HALVES
Instructions See Figure: Crankcase.
1. Clean both case halves with commercial detergents.
2. Check both halves (1) for cracks and damage (visual inspection).
3. Check sealing surfaces (2) for damage (visual inspection).
4. Check threads (3) for cleanliness and clearance.
5. Check that lubrication holes (4) are open and clean with compressed air as required.
Figure 5.25: Crankcase
1 Case halves 2
Sealing surfaces
3 Thread 4
Main bearing lubrication hole
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 5
Page 29
