Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
FILLING GEARBOX WITH OIL
General
NNOOTTEE
Take a measuring cup and fill with 100 ml of XPS® KART TEC GEAR OIL
Special tools The following special tools/equipment are required:
Part no. Description
Field of application
25473.
XPS® KART TEC GEAR
OIL
Gearbox
Instructions See Figure: Adding oil
1. Remove air vent screw (1).
2. Add the specified volume of gear oil (100 ml) through the filling hole (2) in the housing.
3. Use sealing rings A6x10 for the Allen screws (3 = oil drain plug).
4. Screw in the vent screw (1) hand-tight.

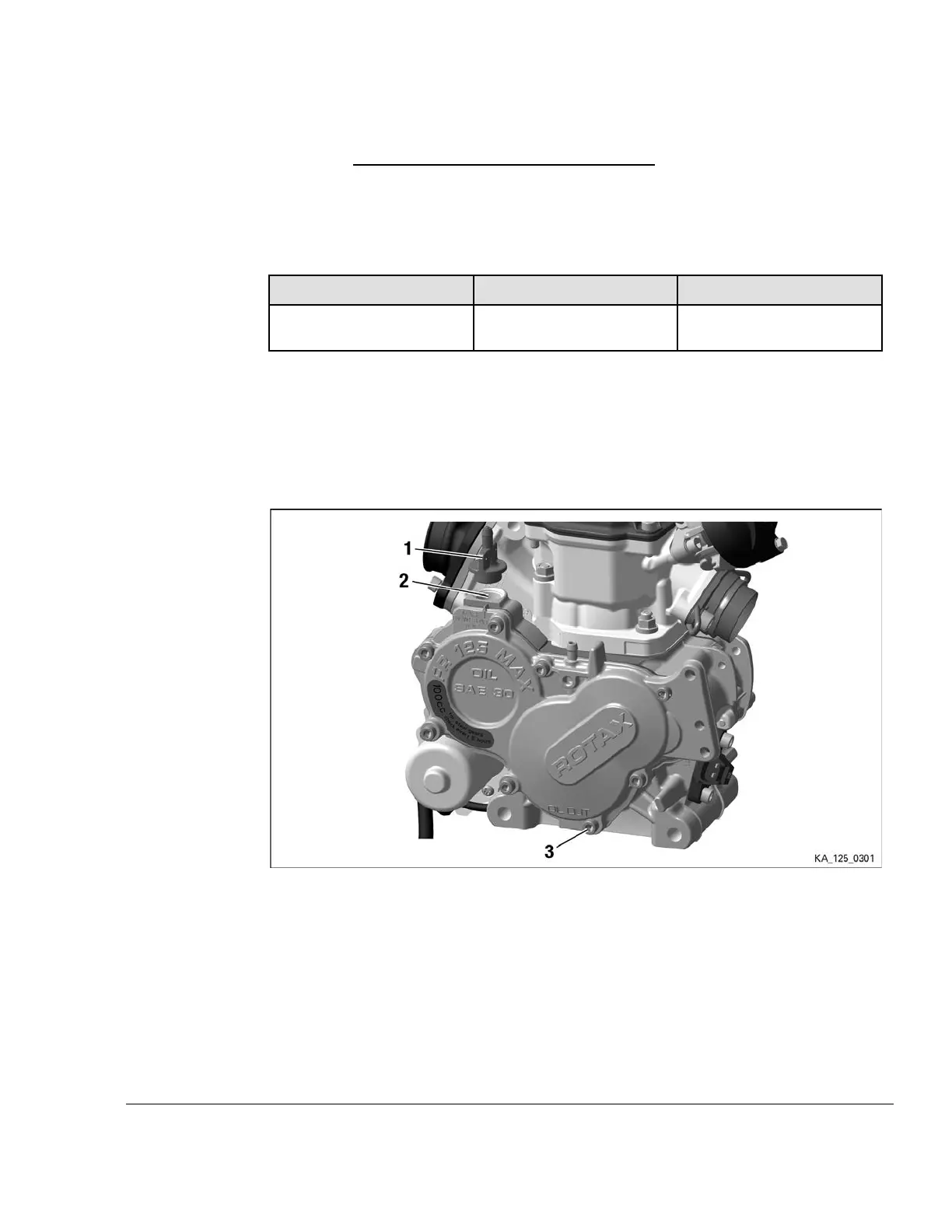

Figure 7.26: Adding oil
1 Air vent screw 2
Filling hole
3
Oil drain plug
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 7
Page 25
