Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
NNOOTTEE
Push the electric starter (1) into the centering of the housing (3) by rotating it back
and forth until the teeth of the electric starter are meshed with the teeth of the
starter reduction gear assy.
NNOOTTEE
Do not forget to put on the ground cable (6).
3. Tighten Allen screw M6x30 (4) on the opposite side of the electric starter (1). Tightening tor-
que 10 Nm (89 in. lb).

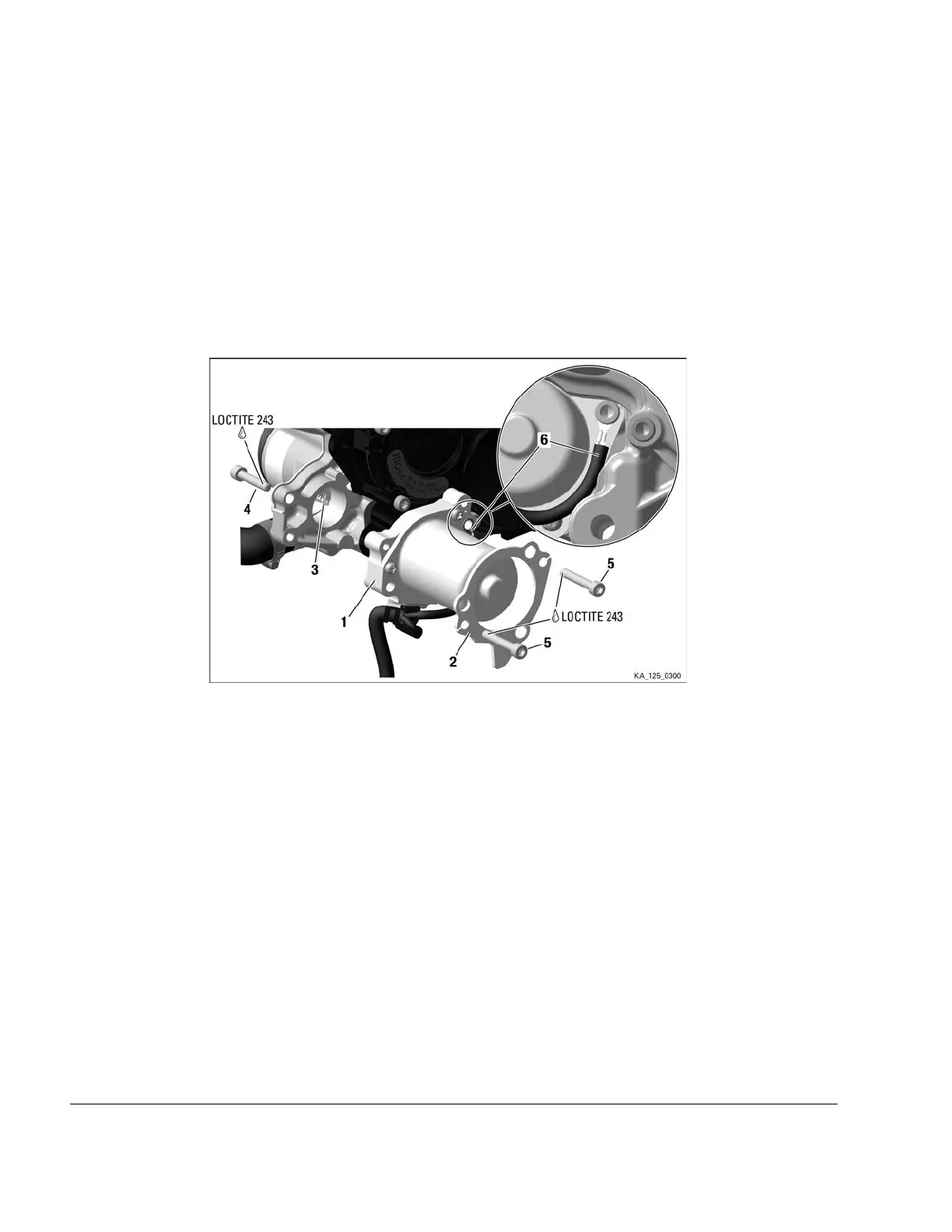

Figure 7.25
1 Electric starter 2
Starter support
3
Centering of housing
4 Allen screw M6x30
5 Allen screw M6x35 6 Ground cable
______________________________________________________
Chapter 7
Page 24
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
