Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
Overview

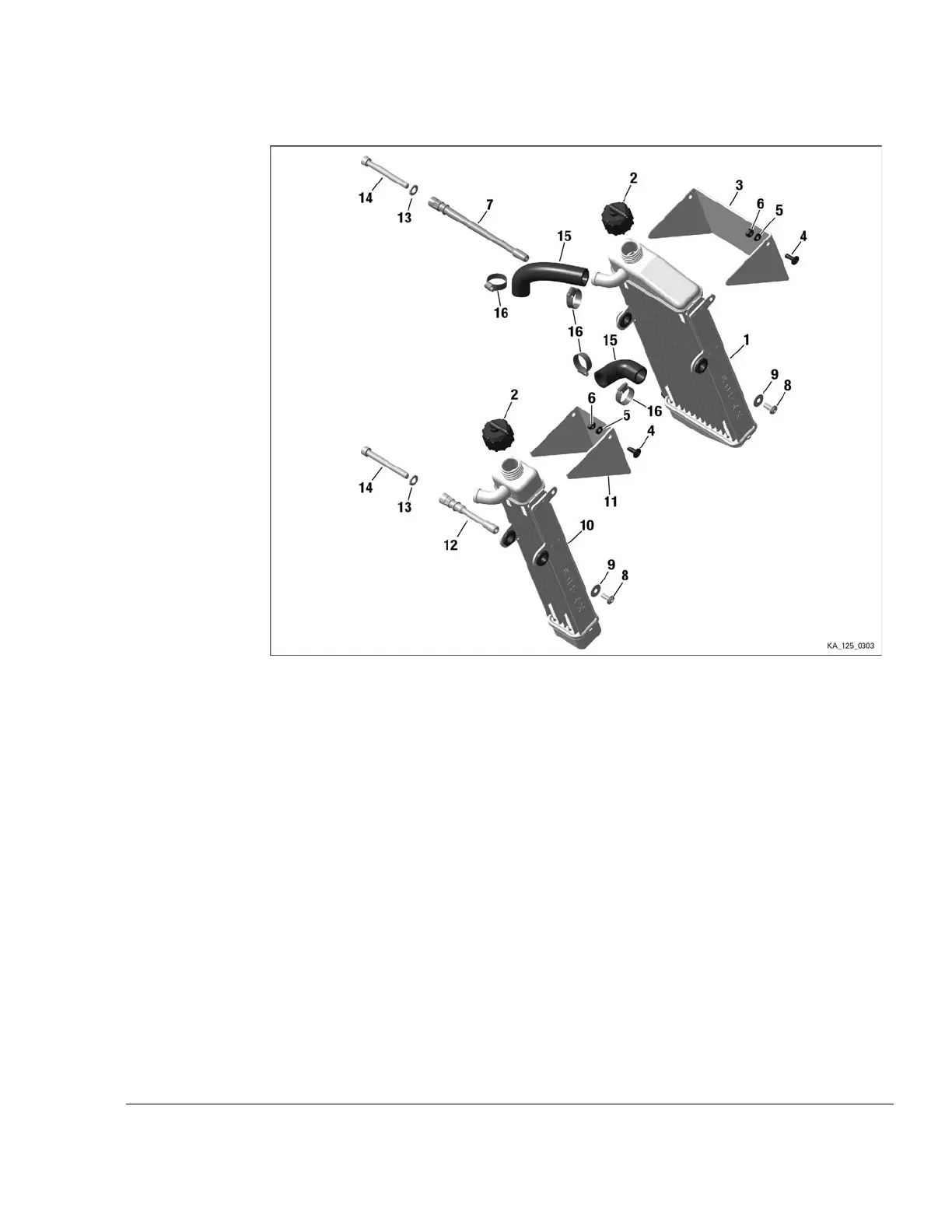

Figure 8.2: Water pump
1
Radiator (Max evo, Junior evo, Mini
evo)
2
Radiator cap with gasket
3
Windshield (Max evo, Junior evo, Mini
evo)
4
Allen screw M6x16 with rounded flange
head
5 Washer 6.4 6 Lock nut M6
7
Radiator bracket (Max evo, Junior evo,
Mini evo)
8
Allen screw M6x20 with rounded flange
head
9 Washer 6.2 10
Radiator (Micro evo)
11
Windshield (Micro evo)
12
Radiator bracket (Micro evo)
13 Lock washer A8 14 Allen screw M8x75
15
Cooling water hose NW 18
16
Clamp 16-25
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 8
Page 3
