Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

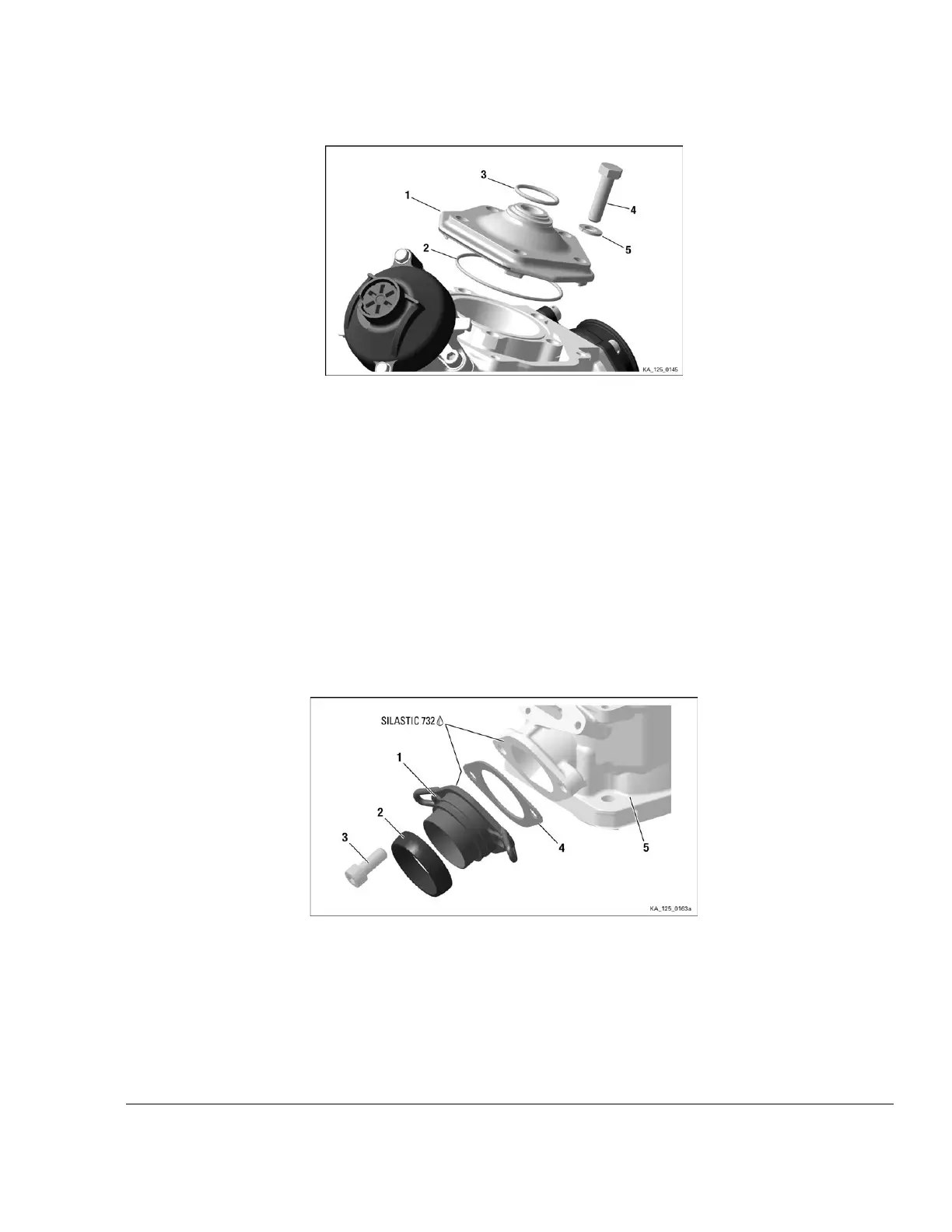

Figure 4.5: Combustion chamber insert
1 Combustion chamber insert 2
O-ring 64x2
3
O-ring 23.3x2.4
4 Hex. screw M8x30
5 Lock washer A8
______________________________________________________
REMOVAL OF THE EXHAUST SOCKET
Instruction See Figure: Exhaust socket.
1. Remove the exhaust socket (1) from the cylinder (5) by unscrewing the 2 Allen. screws (3).
2. Remove the gasket (4).
Figure 4.6: Exhaust socket
1 Exhaust socket 2
Exhaust gasket
3 Allen screw M8x20 4 Gasket
5
Cylinder
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 4
Page 7
