REPAIR MANUAL

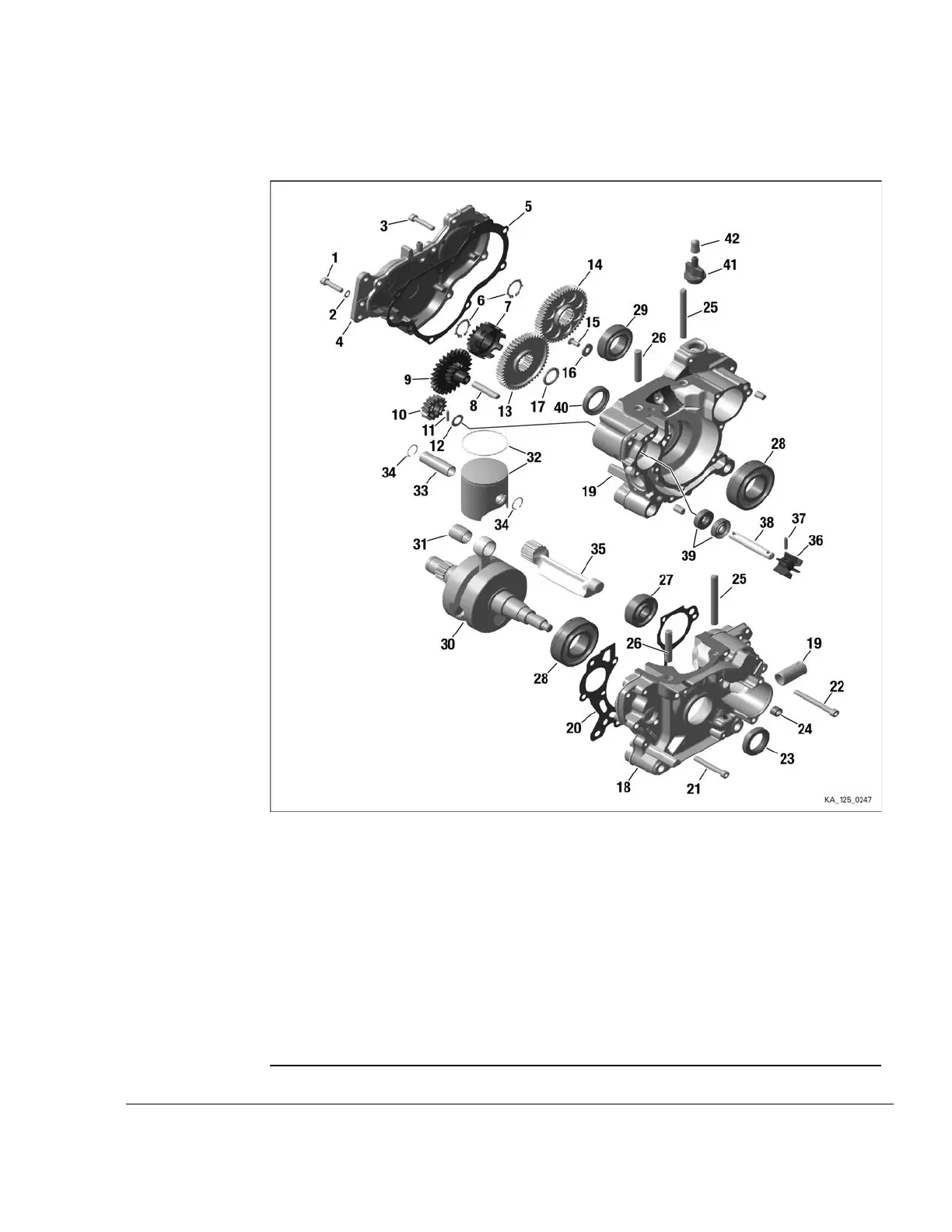

Overview Components of crankcase
Figure 5.2
1 Allen screw M6x25 2
Sealing ring A 6x10
3 Allen screw M6x30 4 Gearbox cover
5 Gasket 6
Retaining ring with lug 20x1.2
7
Water pump gear 19 T
8
Locating pin 8 small M6x40
9
Idle gear 28/13 T
10
Water pump pinion 16 T
11
Needle pin 4x15.8
12 Thrust washer 10.1/17/1
13
Balance gear (crankshaft)
14
Balance gear (balance shaft)
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 5
Page 3
