REPAIR MANUAL
DISASSEMBLING THE CRANKCASE
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
276016 Puller assembly
Case halves
n.a.
Plastic hammer
Crankshaft
Instructions See Figure: Crankcase.
NNOOTTEE
Use two hex. screws to separate the case halves
1. Unscrew all M6 case bolts and remove them.
2. Remove engine housing from trestle mounting plate.
3. Screw Allen screws (1,2) evenly into the extraction thread and press the case halves evenly
apart.

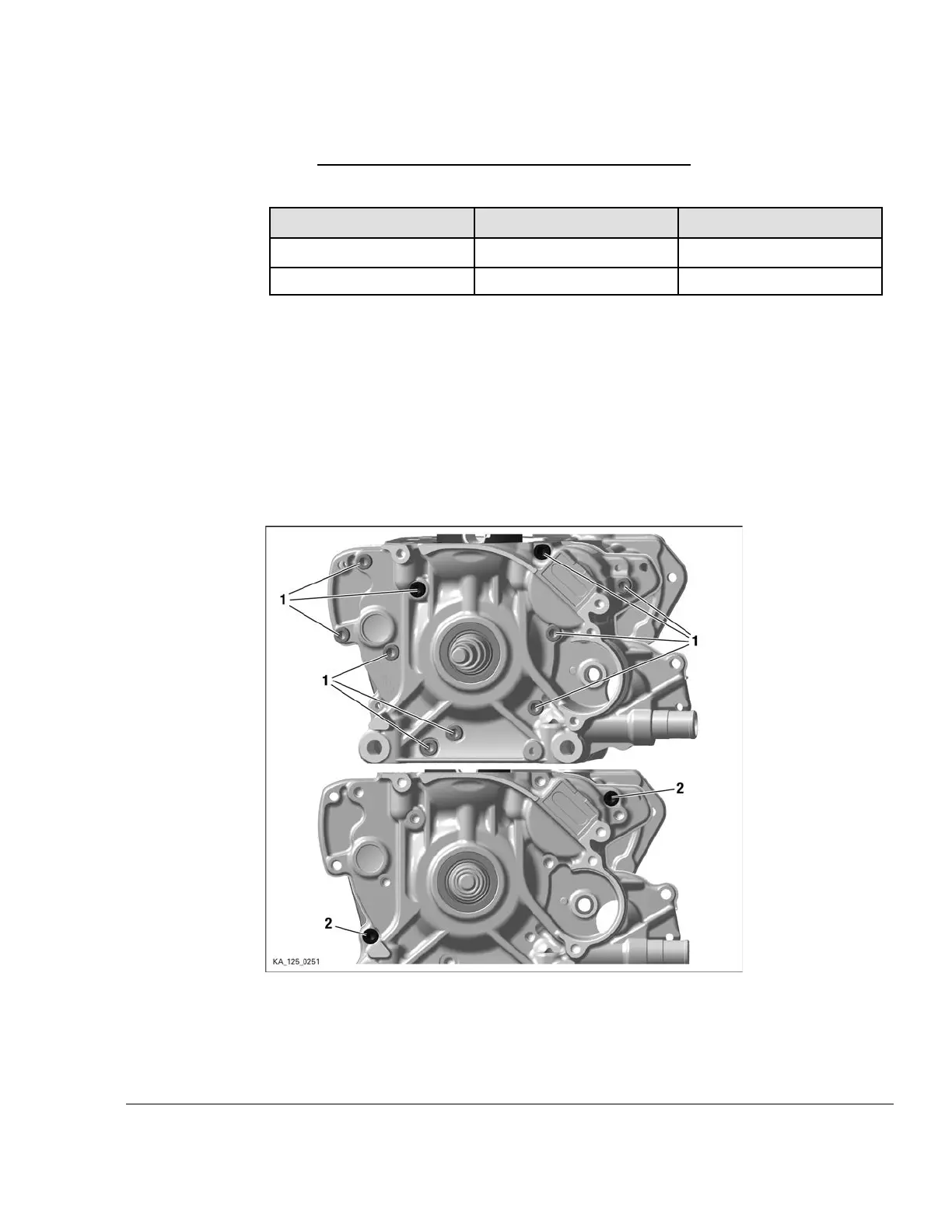

Figure 5.6: Crankcase
1,2
Allen screws
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 5
Page 9
