REPAIR MANUAL
INSTALLING THE RADIATOR
INSTALLATION OF THE COOLING WATER HOSES
Preparation
1. Mount radiator bracket (5) on radiator through the holes with rubber grommets and tighten
with Allen srew M6x20 and washer 6.2.

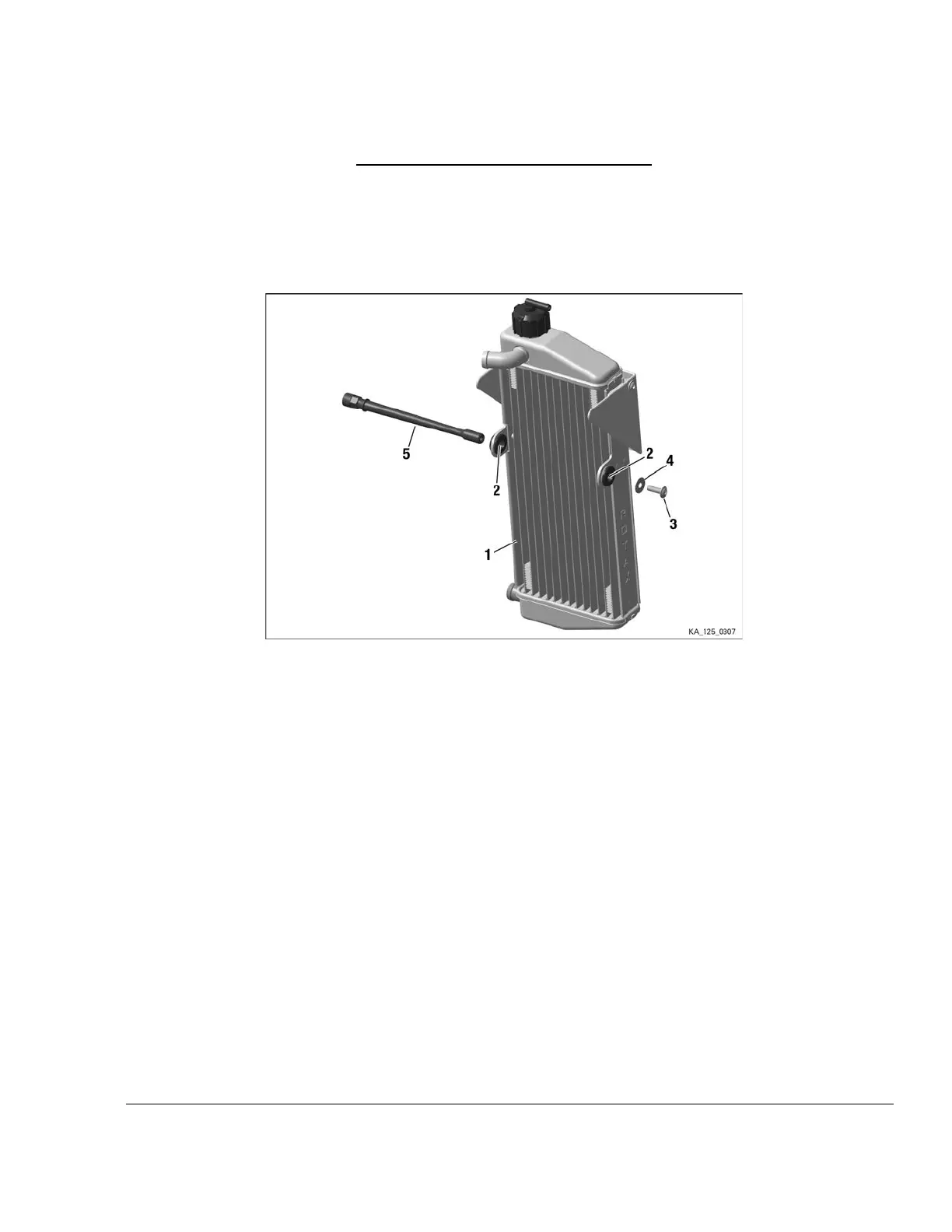

Figure 8.5: Preparation for radiator installation
1 Radiator 2
Rubber grommet
3
Allen screw M6x20 with rounded flange
head
4 Washer 6.2
5 Radiator bracket
______________________________________________________
2. Fit the cooling water hoses (1) to the radiator connection (2) and align with the port on the
engine, then tighten the hose clamps (3) to make it watertight.
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 8
Page 7
