Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

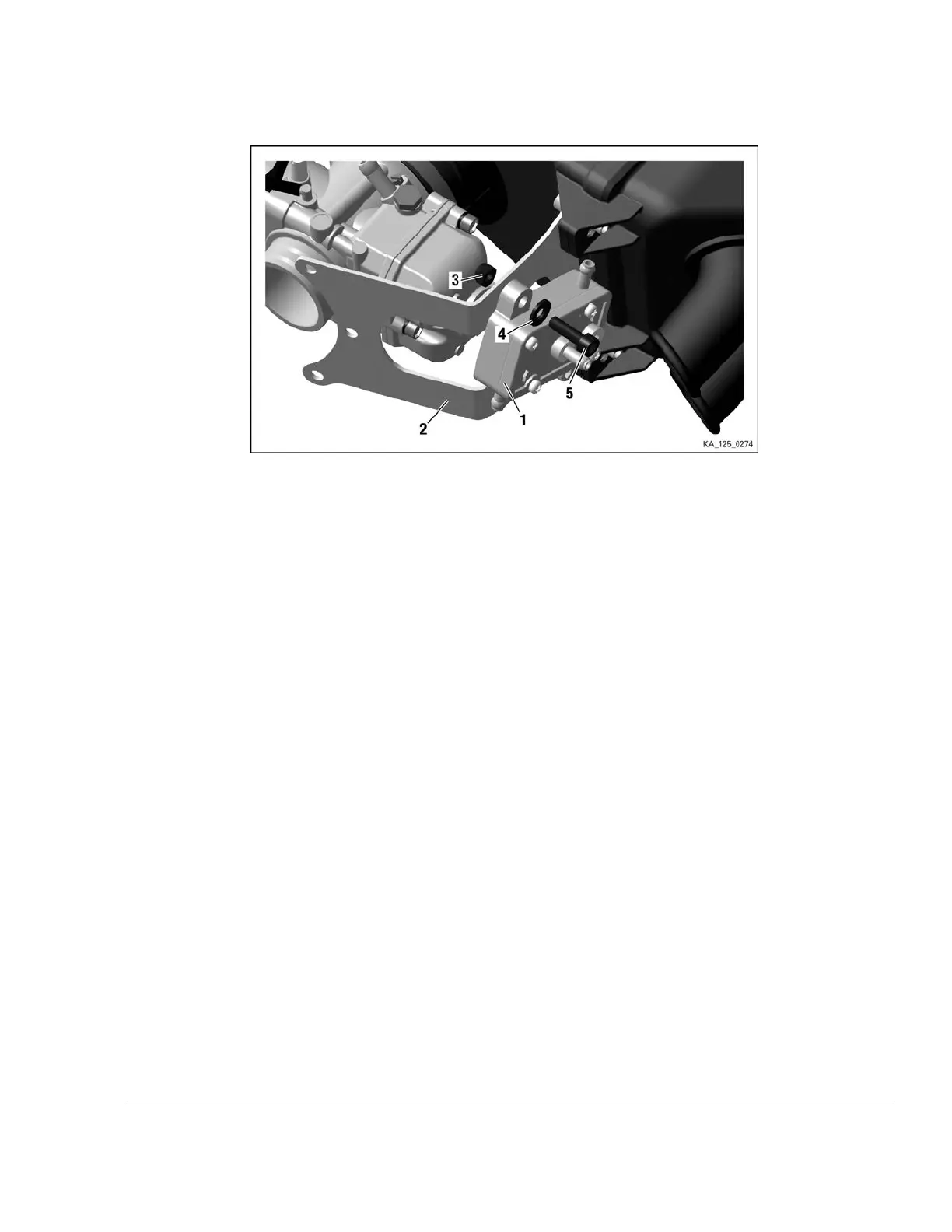

Figure 6.3: Fuel pump
1
Fuel pump
2
Support bracket
3 Lock nut M6 4 Washer 6.4
5 Allen screw M6x20
______________________________________________________
DISASSEMBLY OF THE CARBURETOR
1. Disassembly of the carburetor to the parts shown in Figure: Carburetor and clean them with
fuel.
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 6
Page 5
