Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

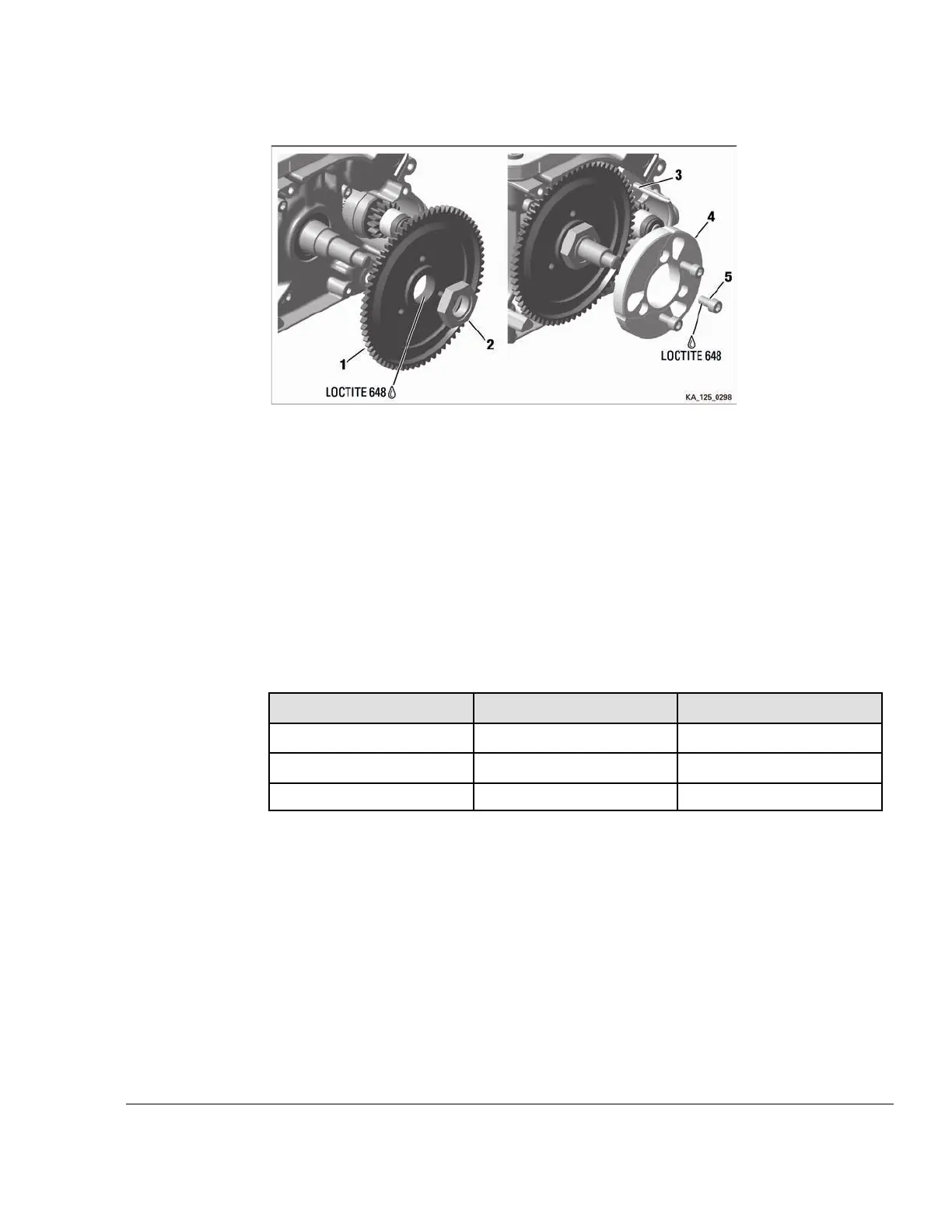

Figure 7.19: Starter gear assy.
1
Starter gear assy.
2 Hex. nut M28x1
3
Fixation tool (starter gear)
4 Clutch
5 Allen screw M6x12
______________________________________________________
ASSEMBLY OF THE CLUTCH DRUM
INSTALLATION OF THE SPROCKET
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
944231 Locating/locking device Clutch drum
277362
Locating/locking device Clutch drum
899788
LOCTITE 648
Hex. nut
Instruction See Figure: Fixation tool
1. Fix fixation tool for sprocket (1) in a vise.
2. Remove LOCTITE residue from the clutch drum (4) and the hex. nut (5).
3. Position clutch drum (4) on the sprocket (2) with needle pin (3).
4. Tighten hex. nut (5) and secure with LOCTITE 648. Tightening torque 100 Nm (74 ft.lb).
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 7
Page 19
