Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
Instructions
1. Preferred version 1: screw in fixation tool for crankshaft (1) into the spark plug thread till the
end stop.

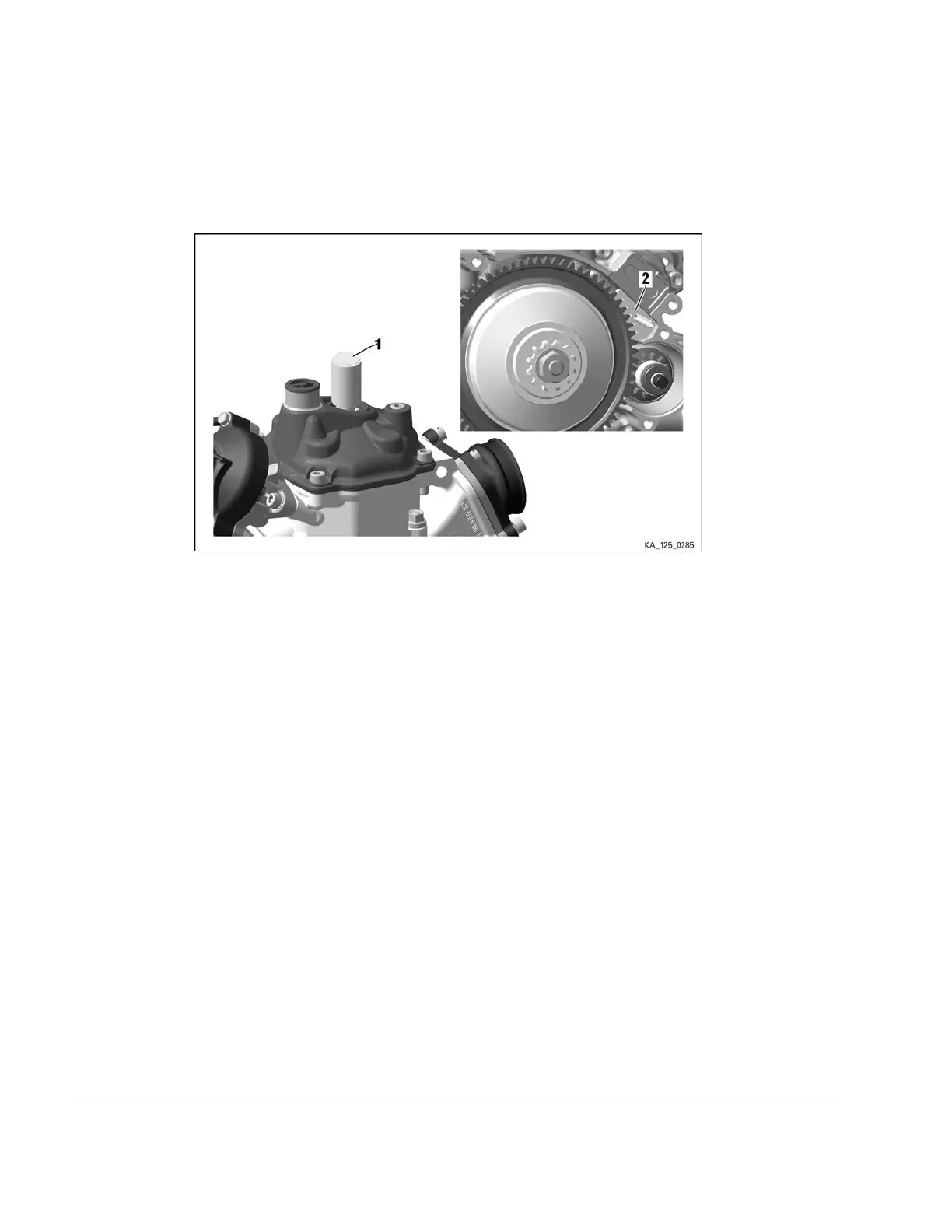

Figure 7.18: Fixation tools
1
Fixation tool (crankshaft)
2
Fixation tool (starter gear)
______________________________________________________
2. Version 2: insert fixation tool assy. (3) into the starter gear assy. (1).
3. Lubricate taper of starter gear assy. (1) with LOCTITE 648.
4. Install starter gear assy. (1) onto crankshaft and tighten with hex. nut M28x1 SW 30 H=4.6
(2). Tightening torque 120 Nm (89 ft. lb).
5. Wipe away the surplus LOCTITE.
6. Install the clutch (4) with 3 Allen screws M6x12 (5) and secure with LOCTITE 648. Tighten-
ing torque 17 Nm (150 in. lb).
Chapter 7
Page 18
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
