Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
ELECTRIC STARTER REPAIR KIT
Special tools The following special tools and equipment are required:
Part no. Description Use
281262 Electric starter repair kit Electric starter
Instructions See Figure: Electric starter
1. Remove the starter housing from the crankcase and gearbox case by unscrewing 2 Allen
screws.
2. Disconnect electrical connection (5) from the starter (4).
3. Unscrew the starter housing screws (8).

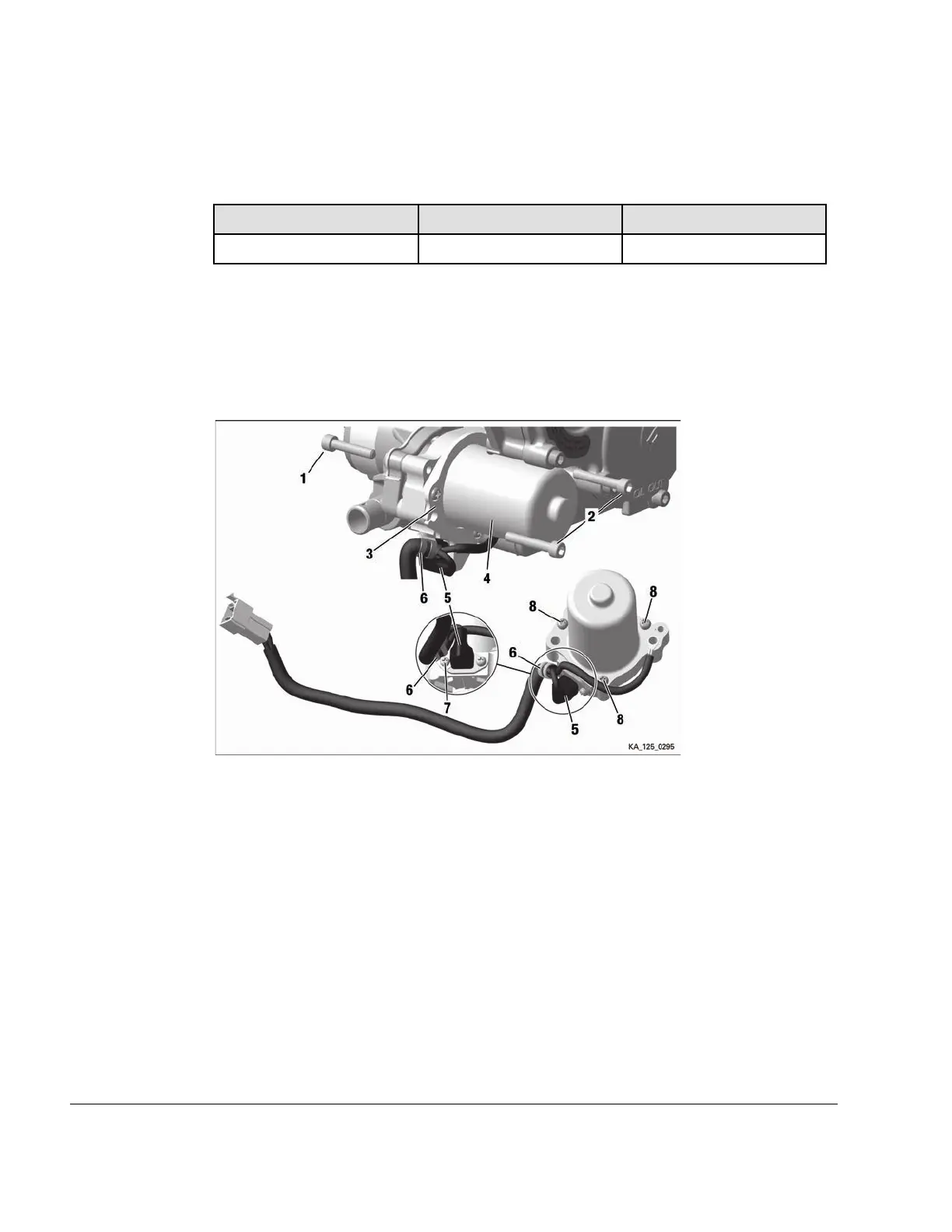

Figure 7.15: Electric starter
1 Allen screw M6x30 2 Allen screw M6x35
3
Starter support
4 Electric starter
5
Pick up sensor
6 Starter cable
7 Allen or TAPTITE screw M6x20 8
Starter housing screws
______________________________________________________
DISASSEMBLING OF ELECTRIC STARTER
Instructions See Figure: Electric starter disassembly
NNOOTTEE
Take care not to loose the spring-loaded sliding contacts.
Chapter 7
Page 14
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
