REPAIR MANUAL

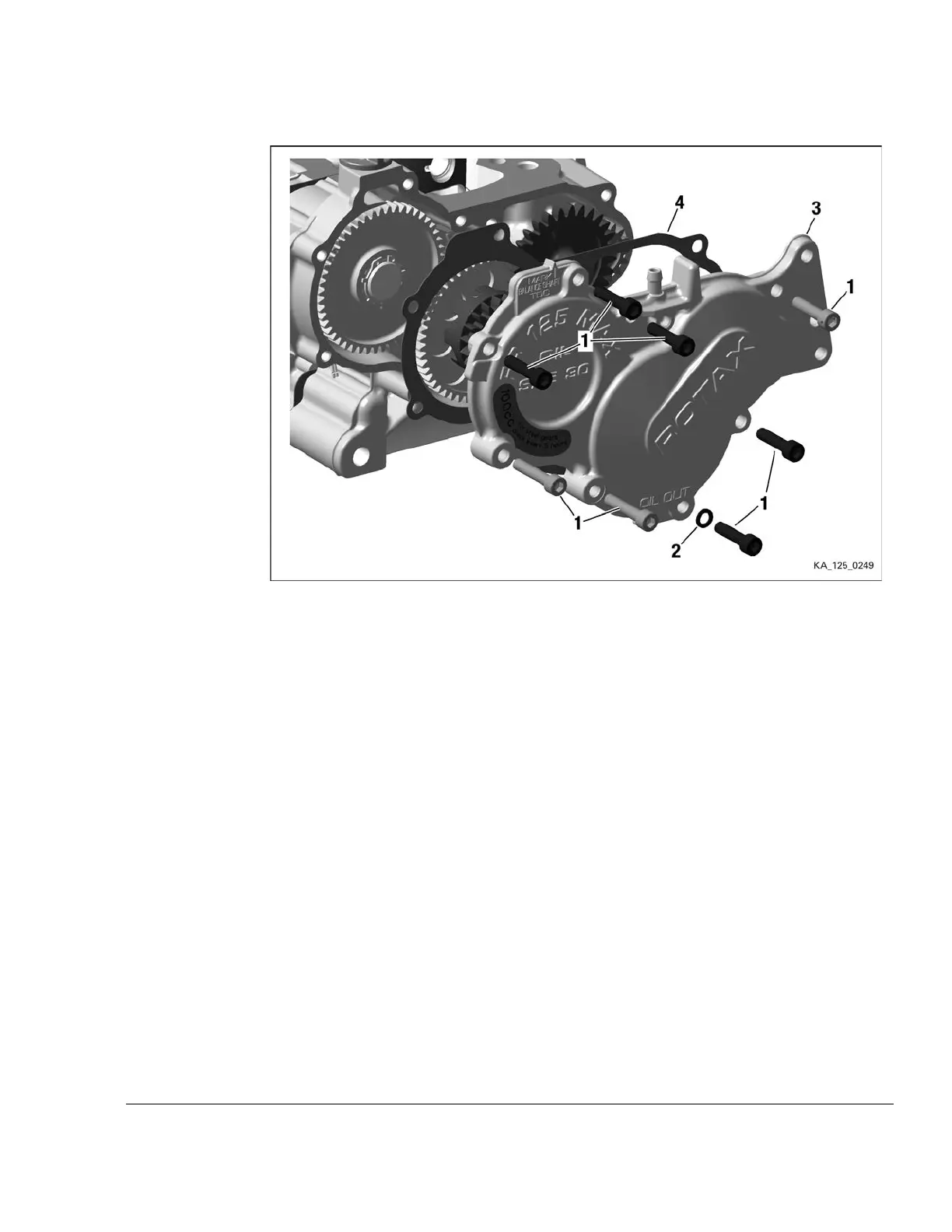

Figure 5.4: Gearbox cover
1 Allen screws 2
Sealing ring A 6x10
3 Gear cover 4 Gasket
______________________________________________________
Instruction See Figure: Water pump and balance shaft.
3. Remove water-pump pinion (2) and idle gear (5).
4. Remove needle pins (3) and thrust washer (4) from the water-pump shaft.
5. Remove retaining ring (5) with circlip pliers.
6. Remove the drive gear (9) from the crankshaft.
7. Heat balance gear (8,7) evenly with hot air if they do not move freely and remove them from
crankshaft or balance shaft.
8. Remove O-ring (9) from the crankshaft.
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 5
Page 7
