Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
REMOVAL OF THE PISTON
General See Figure: piston.
ATTENTION
In order to protect the piston pin circlip from unintentional loss, a suitable clean cloth
should be used to cover the open cylinder bore in the crankcase.
ATTENTION
Always support the piston with the hand in order to avoid a bending moment or damage
of the surface.
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
676035 Insertion tool Piston
976380
Circlip puller Circlip
Instructions Proceed as follows to remove the piston:
1. Pull out the circlip (2) with the circlip puller (1). Use safety goggles to protect your eyes!
2. Press the piston pin (4) out of the piston with the point of the special tool (3).

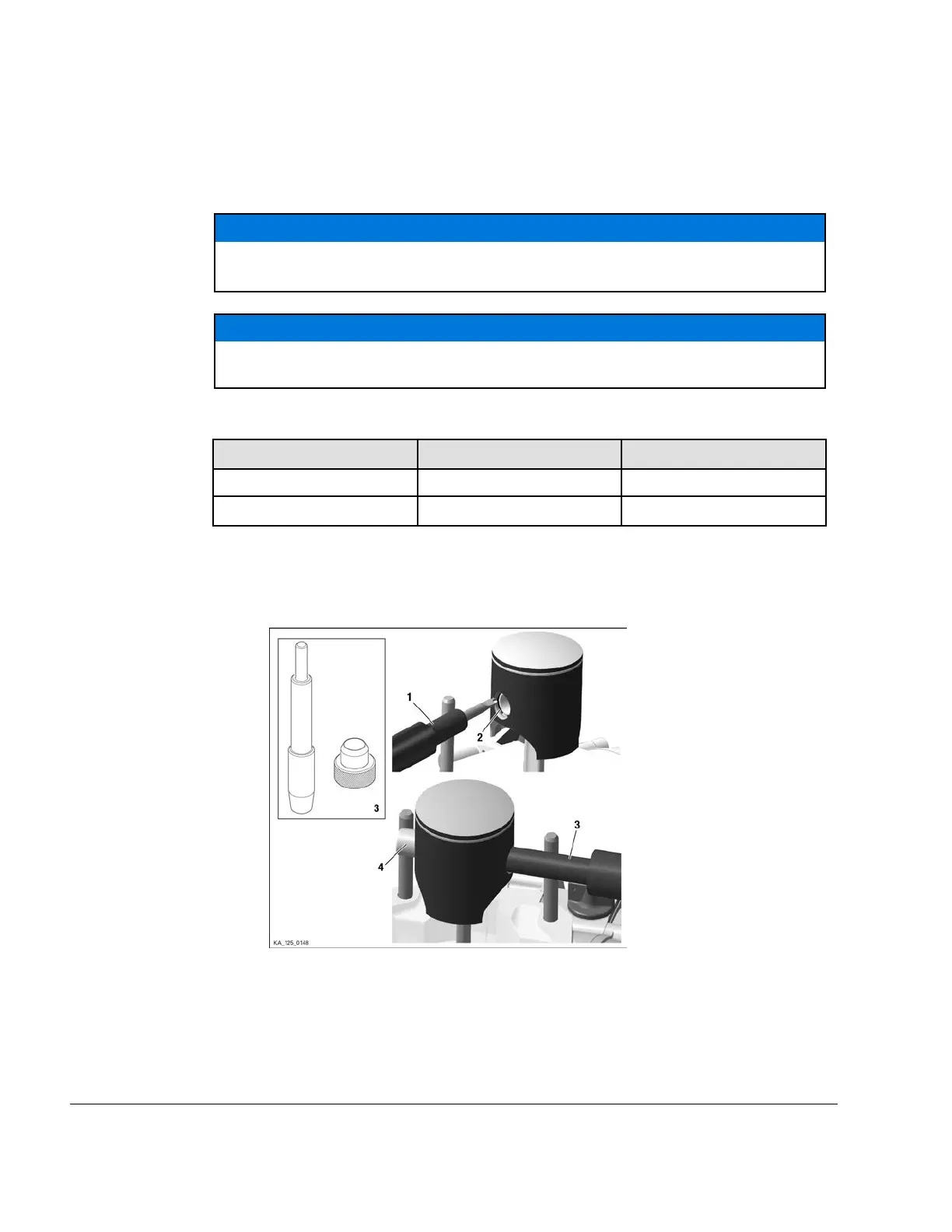

Figure 4.9: Piston
1
Circlip puller
2
Circlip
3
Special tool part no. 676035
4
Piston pin
Chapter 4
Page 10
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
