BRP-Rotax
REPAIR MANUAL
INSTALLING THE CARBURETOR AND INTAKE SILENCER
ASSEMBLY OF CARBURETOR
Instruction
NNOOTTEE
Use ROTAX® gasket set, part no. 293834.
1. Assemble the components in the opposite succession as you disassembled them. See also
Chapter 6) section: Disassembly of the carburetor.
ASSEMBLY OF FLOAT HOUSING
General
NNOOTTEE
The tips of the bracket must be at the same height. Adjust them if necessary. In
this check the float chamber should not have been fitted.
Instruction The following steps are required to install the float housing:
See Figure: Float chamber
1. Check the position of the float attachment (1) in its installed state.
2. When the floats (2) are inserted you should be able to see the word "ALTO" on their top
surfaces.
3. Install and adjust the Bowden cable in accordance with the operating instructions.
4. Set the idle adjuster screw (3) and adjustment screw kit (4).

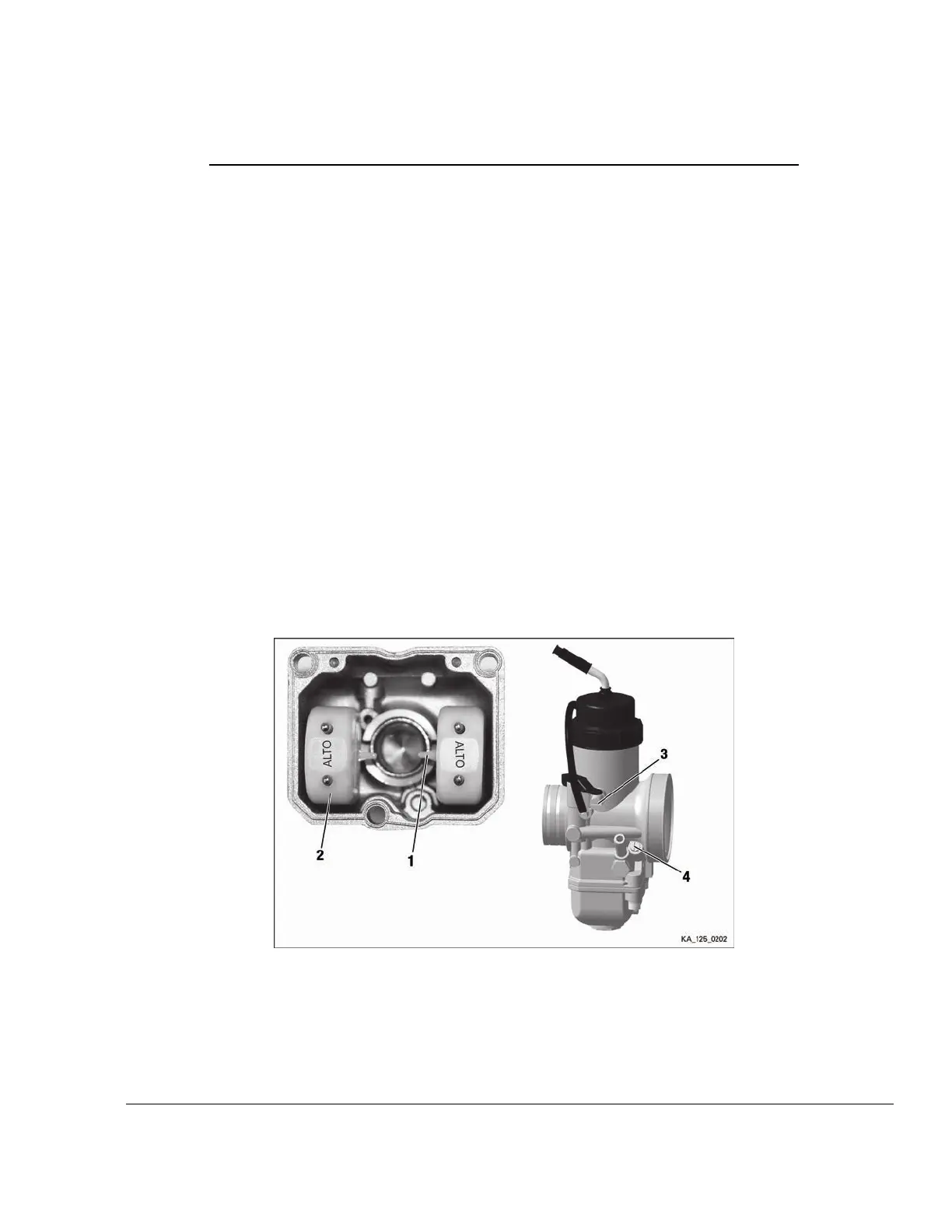

Figure 6.9: Float chamber
1 Float attachment 2 Float 4.0
3
Adjustment screw
4
Adjustment screw kit
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 6
Page 11
