Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
REMOVAL OF THE CLUTCH DRUM
Special tools The following special tools and equipment are required:
Part no. Description Use
277381 Locking tool
Spark plug thread
676205 Fixation tool assy.
Starter gear assy.
Preparation
• Remove the chain protection (1).

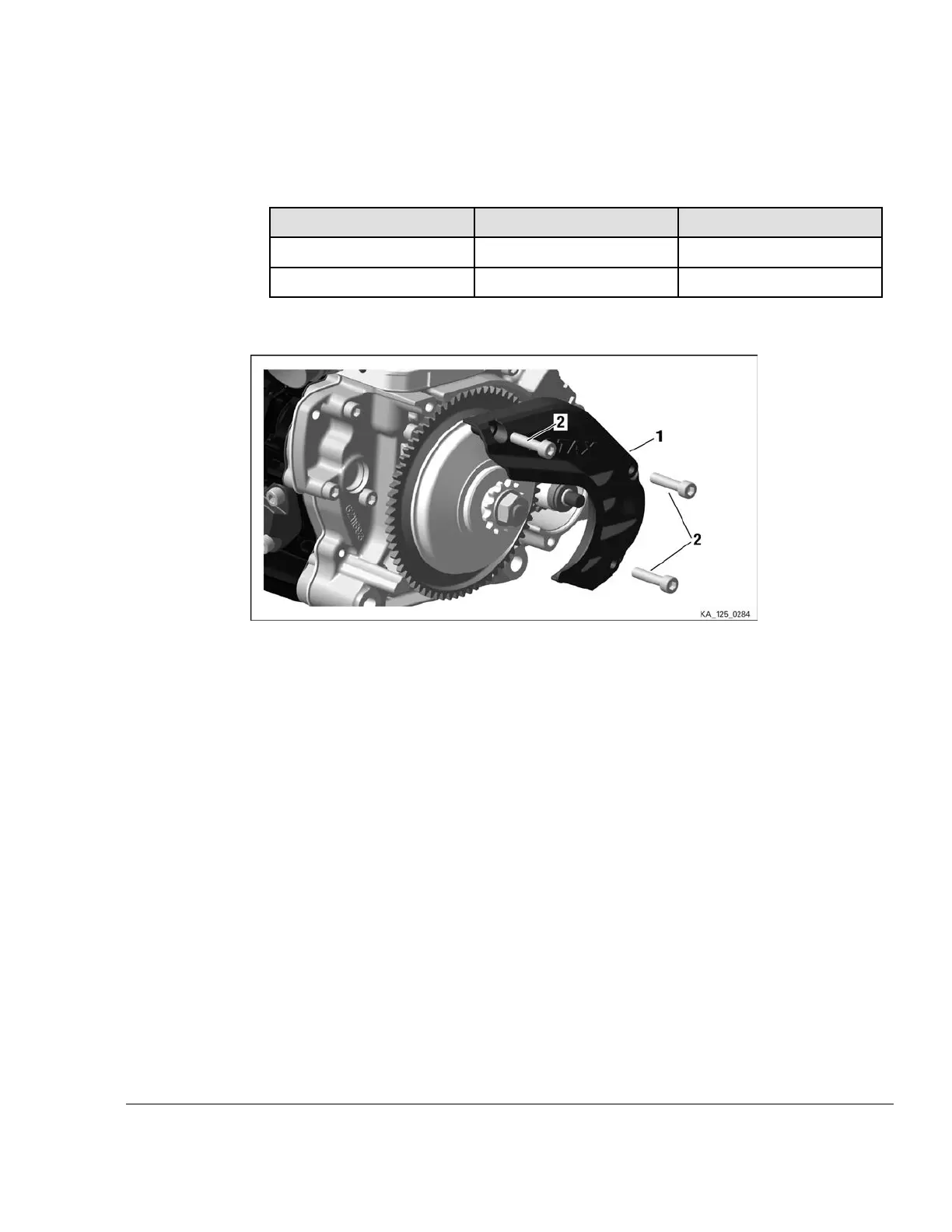

Figure 7.4: Cover
1
Chain protection
2 Allen screw M6x25
______________________________________________________
Instructions
1. Remove the spark plug.
2. Preferred method 1: screw in fixation tool for crankshaft (1) into the spark plug hole to the
limit stop.
3. Method 2: insert fixation tool assembly (2) (part no. 676205) in the starter gear assembly.
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 7
Page 5
