Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
CARBURETOR AND INTAKE SILENCER – INSPECTION OF
COMPONENTS
In the case of problems with the fuel supply the carburetor should be checked:
First the components should be cleaned and then inspected.
INSPECTION OF THE CARBURETOR
Instruction See Figure: Carburetor.
1. Clean the fuel filter (1) and make sure that it is in good condition.
2. Blow compressed air through the holes in the carburetor housing (2) and the jets (3, 4, 5, 6
and 7) and make sure that there is no pollution to have an easy and free flow.
3. Check that the clip (8) is tightly seated on the jet needle (9).

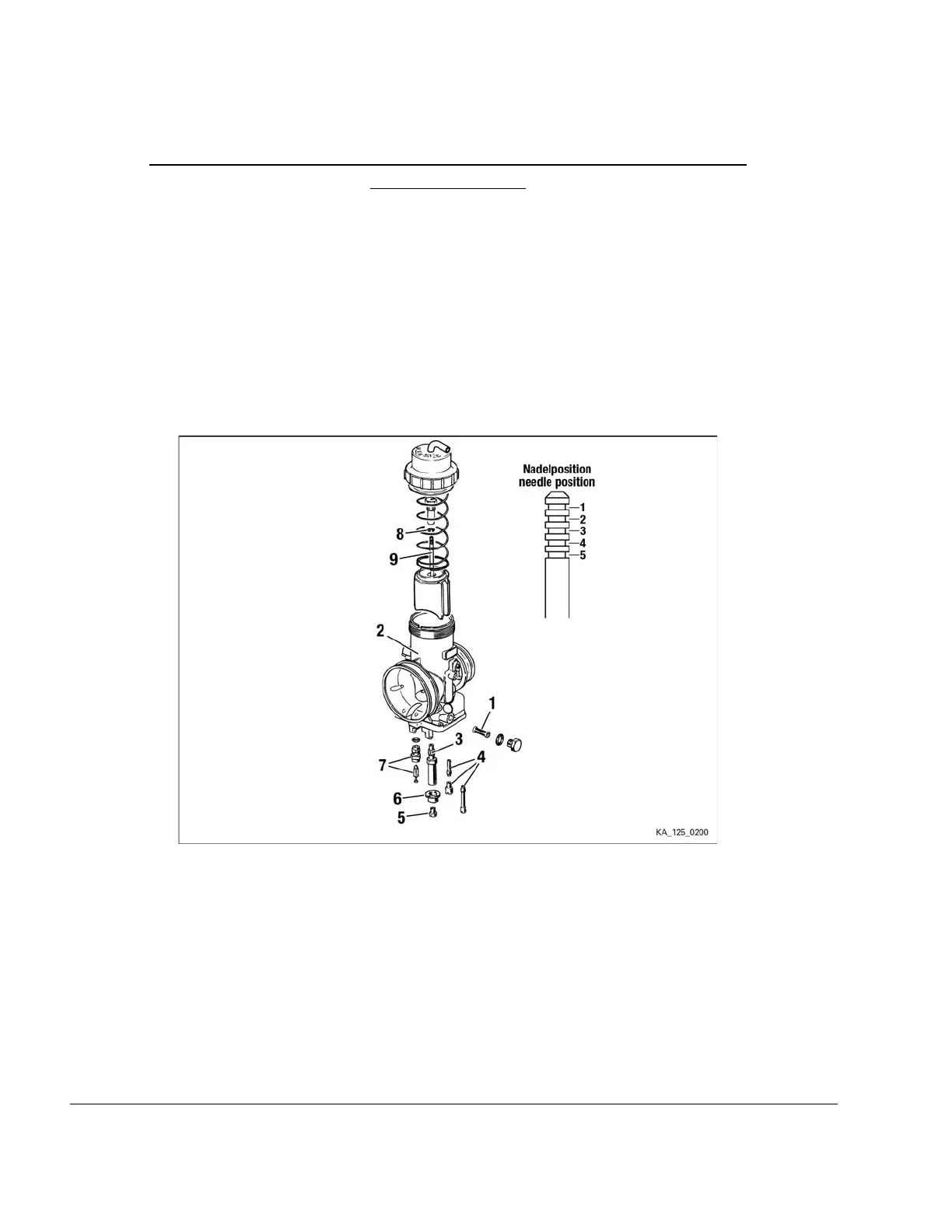

Figure 6.6: Carburetor
1 Fuel filter 2
Carburetor housing
3
Needle jet DP 267
4
Idling and starter jets
5
Main jet
6
Main jet cup
7
Needle valve 150 (standard) 200
(optional)
8
Clip
9 Jet needle K 57
______________________________________________________
Chapter 6
Page 8
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
