Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

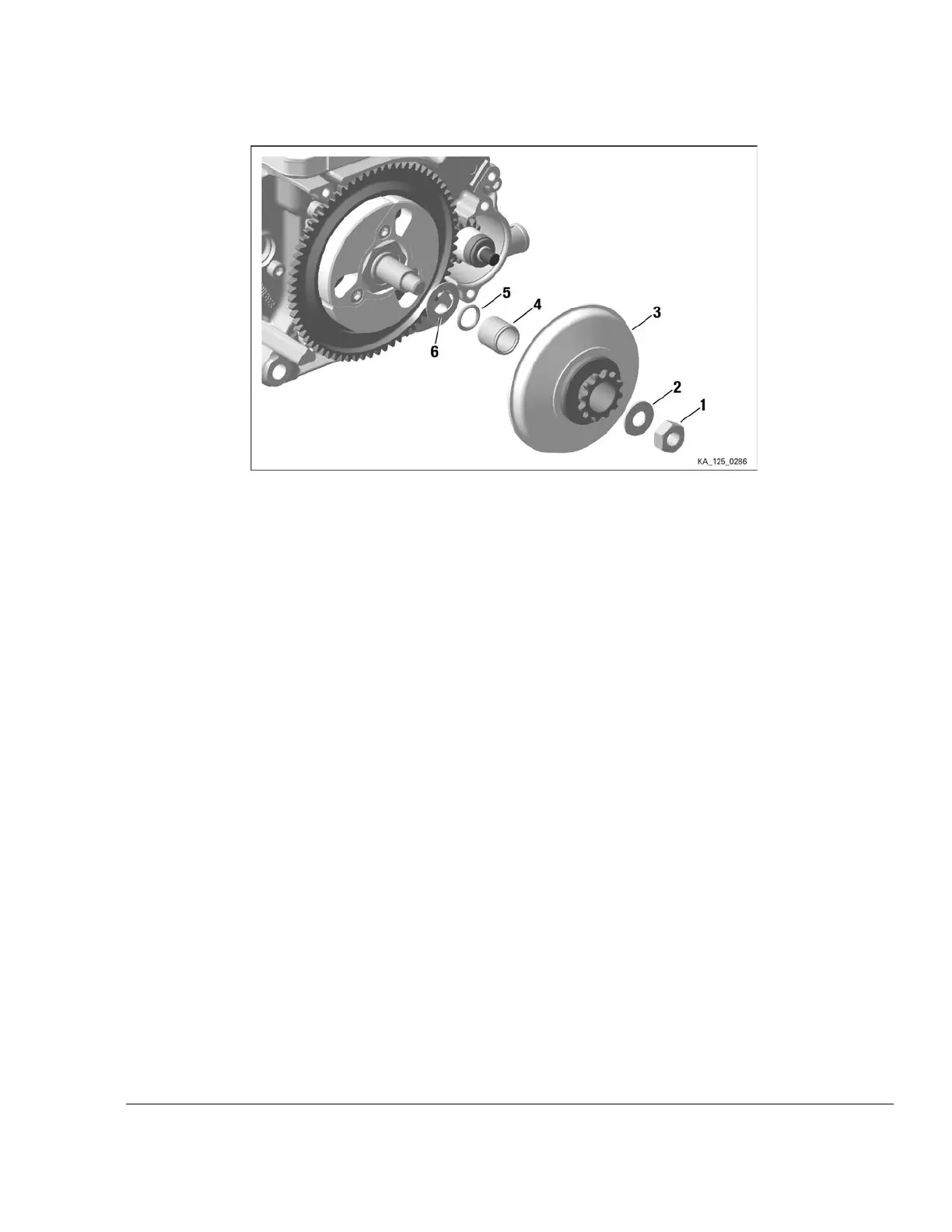

Figure 7.6
1 Hex. nut M10x1 2 Thrust washer
3 Clutch drum 4
Needle cage / Plain bearing
5
O-ring
6 Thrust washer 15.2
______________________________________________________
REMOVAL OF THE SPROCKET
Instruction See Figure: Fixation tool
1. Fix fixation tool for sprocket (1) in a vise.
2. Insert clutch drum (4) with installed sprocket (2) into the corresponding toothed cutout.
3. Unscrew the hex nut (5) for the sprocket.
4. Remove the sprocket from the clutch drum.
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 7
Page 7
