Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

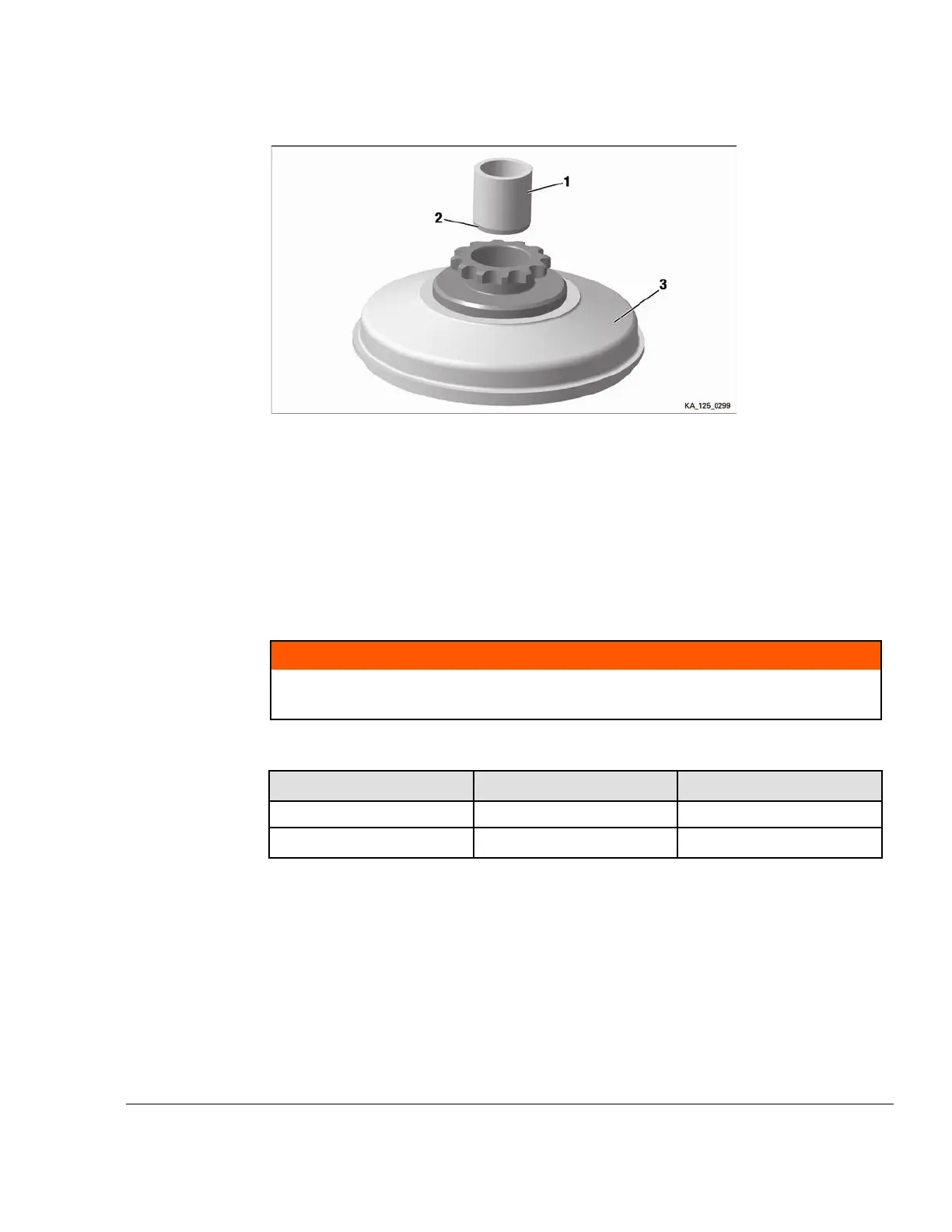

Figure 7.21: Installation of bearing sleeve
1
Bearing sleeve
2
Beveled edge
3 Clutch drum
______________________________________________________
INSTALLATION OF THE CLUTCH DRUM
Safety
m WARNING
Risk of fatal injury!
The engine must not be started without a clutch drum.
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
897651
LOCTITE 243 Crankshaft thread
897330 Lithium-based grease Running areas
Instruction
1. Lubricate crankshaft with lithium based grease in the running area of the needle cage (4).
2. Position thrust washer 15.2 (6) and O-ring (5) on the crankshaft.
3. Lubricate the needle cage (4) with lithium based grease and position on crankshaft.
4. Slide clutch drum (3) onto the crankshaft.
5. Lubricate the crankshaft with LOCTITE 243 in the thread area of the hex. nut.
6. Tighten hex. nut (1) with thrust washer (2) (machined side towards the clutch drum). Tighten-
ing torque 35 Nm (26 ft.lb).
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 7
Page 21
