7. Remove fixation tools for crankshaft and/or the starter gear assy.

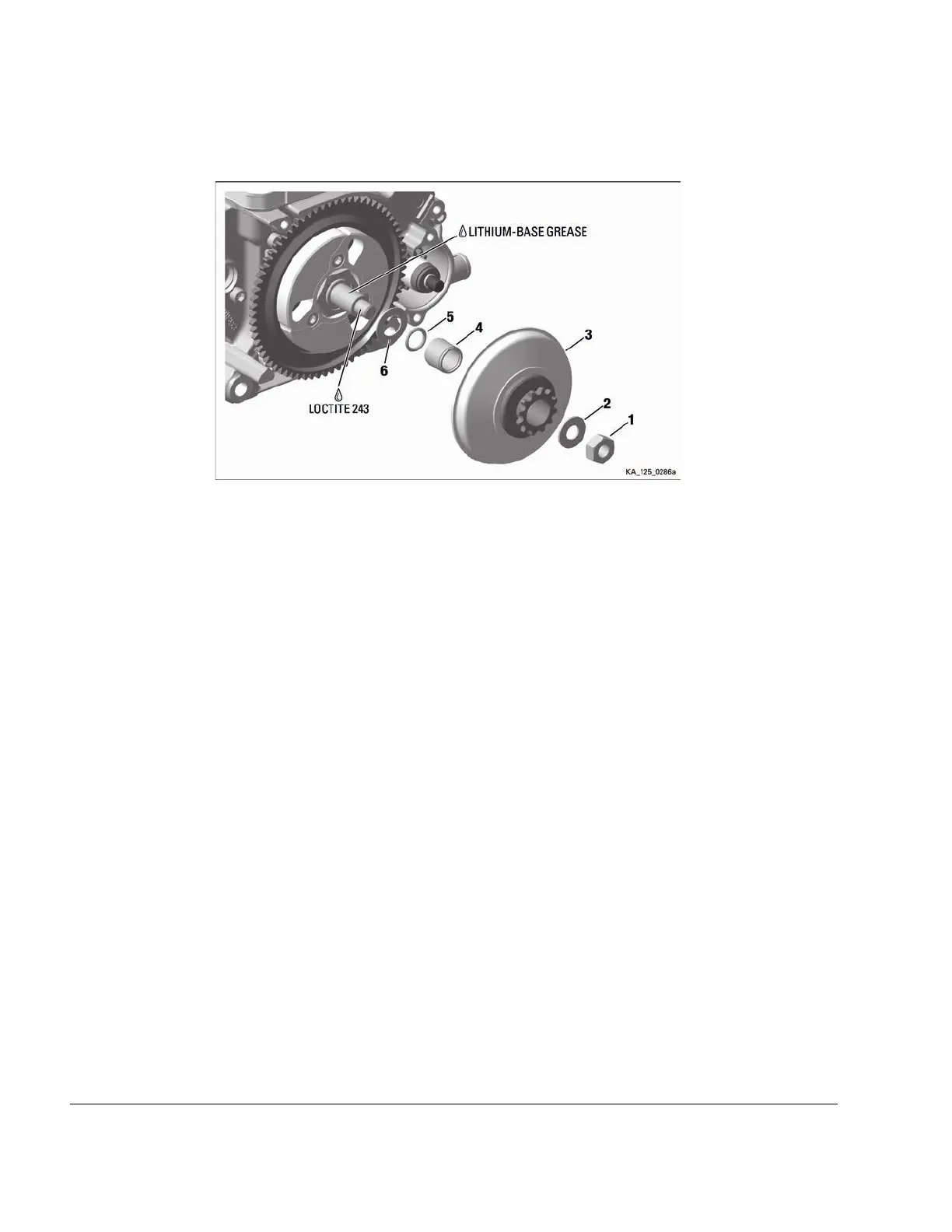

Figure 7.22: Clutch drum
1 Hex. nut 2 Thrust washer
3
Clutch drum with sprocket
4
Needle cage
5
O-ring
6 Thrust washer 15.2
______________________________________________________
8. Lubricate starter reduction gear assy. in the area shown in the following figure.
9. Install chain protection with 3 Allen screws M6x25. Tightening torque 5 Nm (44 in. lb).
10. Install spark plug. Tightening torque 24 Nm (18 ft. lb).
Chapter 7
Page 22
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
