Instruction To install the carburetor and intake silencer the following steps are required:
See Figure: Carburetor and intake silencer.
1. Pull the hose clamp (3) over the carburetor flange.
2. Push the carburetor (1) onto the carburetor flange (2) and fasten the hose clamp (3).
3. Secure the intake silencer (4) with the hose clamp (5) on the carburetor.
4. Secure the intake silencer on the support bracket (6).
5. Check the Bowden cable (11) for wear, especially where it bends. Bends can cause the throt-
tle to be stuck in fully open. See Chapter 9.
6. Connect the fuel feed line (9) and Bowden cable (11) to the carburetor.
7. Connect the impulse pipe (10).

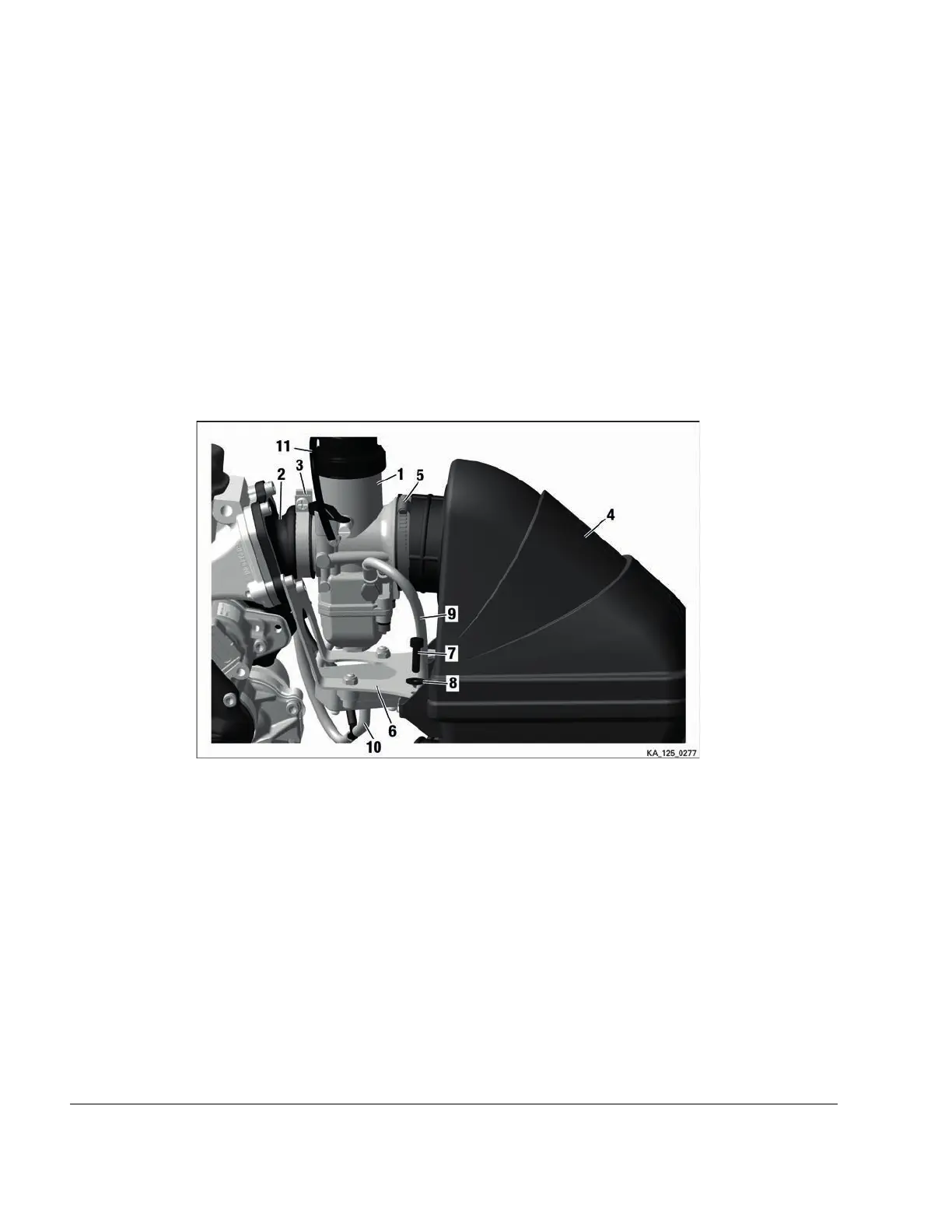

Figure 6.11: Carburetor and intake silencer
1 Carburetor 2
Carburetor flange
3
Hose clamp
4 Intake silencer
5
Hose clamp 51
6
Support bracket
7 Allen screw M6x25 8 Washer 6.4
9 Fuel feed tube/line 10
Impulse pipe
11
Bowden cable (loosely, not mounted in
fig.)
______________________________________________________
Chapter 6
Page 14
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
