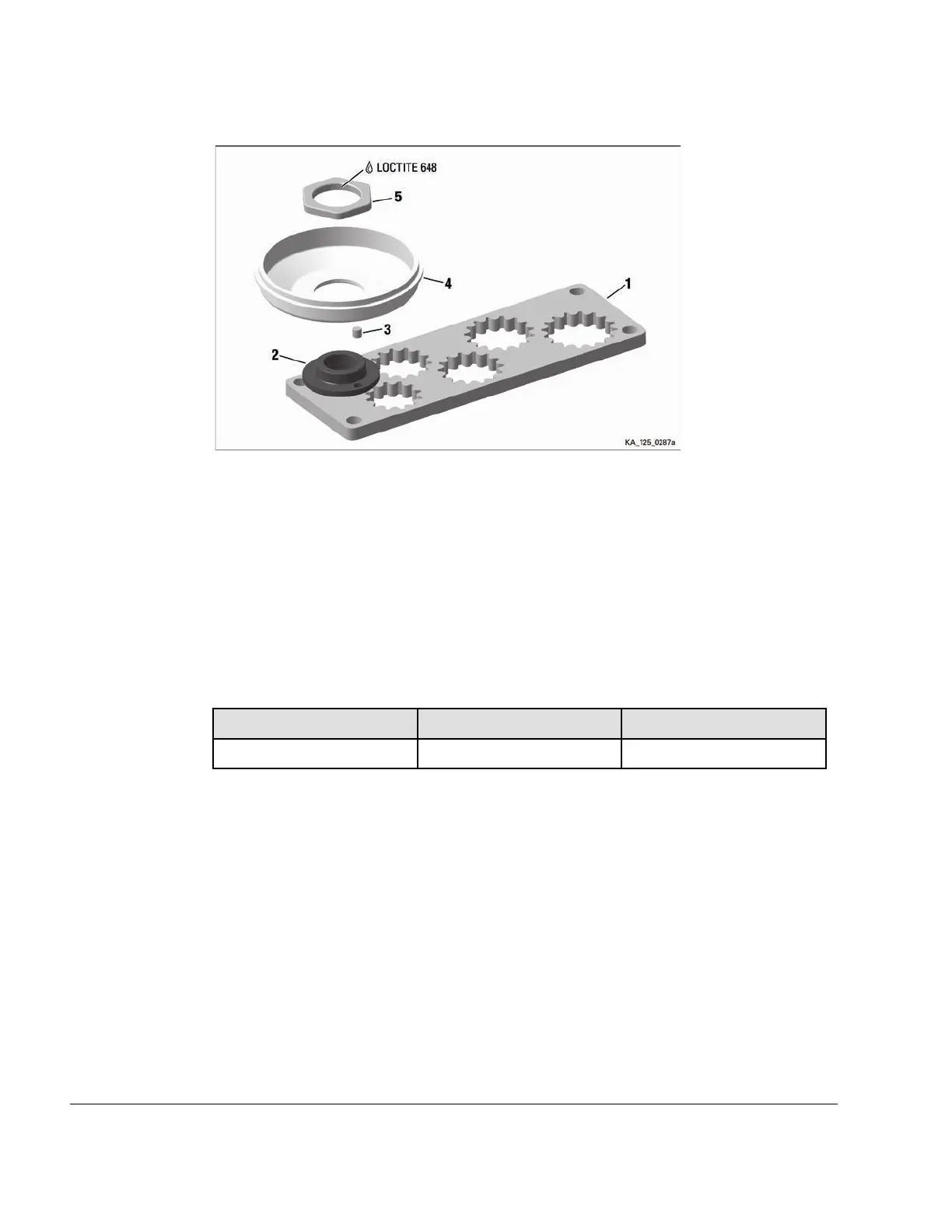

Figure 7.20: Fixation tool
1 Fixation tool 2
Sprocket
3
Needle pin
4 Clutch drum
5 Hex. nut.
______________________________________________________
INSTALLATION OF BEARING SLEEVE (FOR SPROCKETS WITH 11 TEETH ONLY)
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
676040 Installation tool
Sprocket
Instruction See Figure: Installation of bearing sleeve
1. Put the new bearing sleeve (1) with the beveled edge (2) down onto the clutch drum with
sprocket (11 teeth) and press with installation tool (part no. 676040) until end stop.
Chapter 7
Page 20
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
