Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
Overview Exhaust system

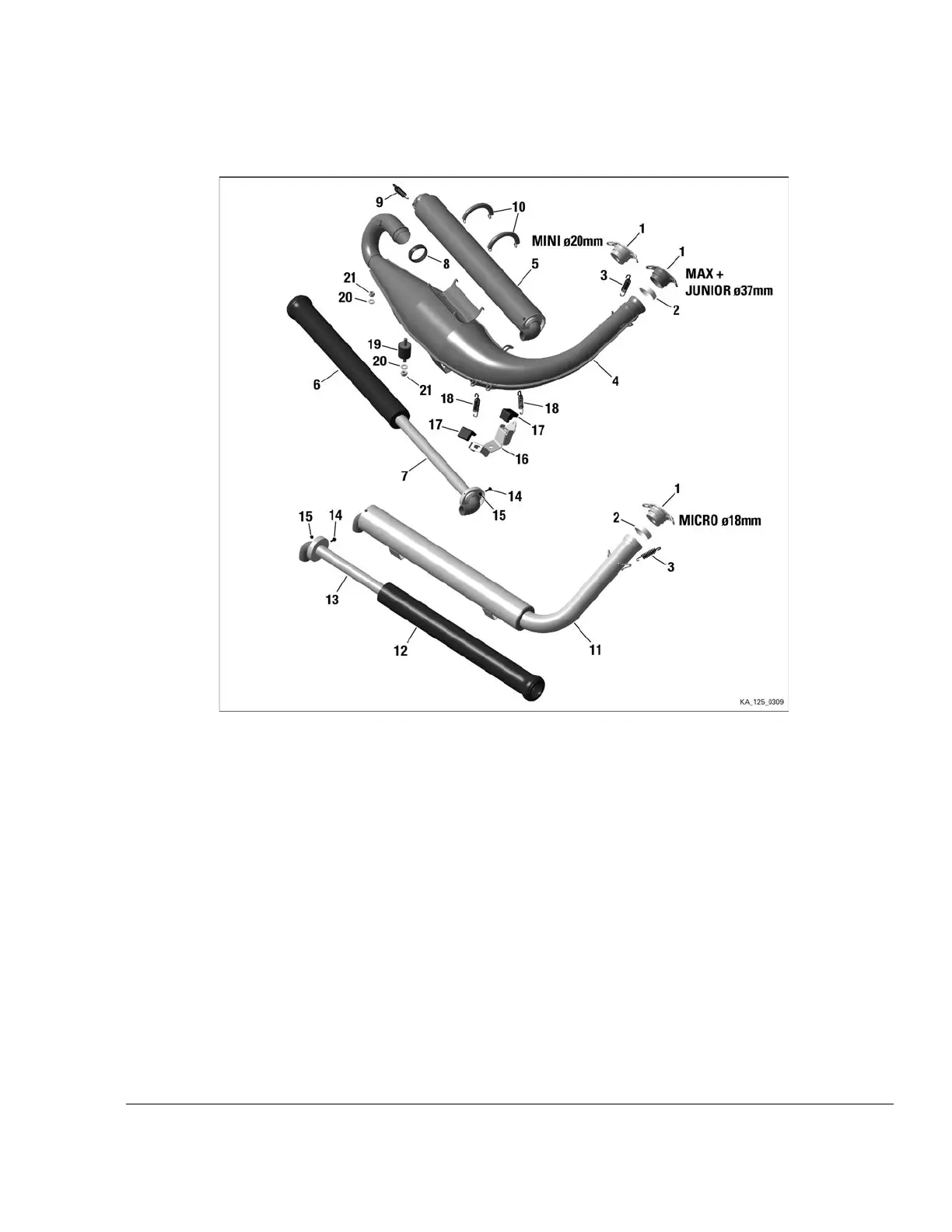

Figure 9.2
1
Exhaust socket
assy.
2
Exhaust gasket
3
Spring stainless
4
Exhaust muffler
assy.
5
Silencer assy.
6
Isolating mat
7
Perforated tube
assy.
8
Exhaust gasket
9
Spring stainless
10
Tension springs
11
Silencer assy.
MICRO
12
Isolating mat, MICRO
13
Perforated tube
assy. MICRO
14
Washer 8.4 stain-
less, MICRO
15
Lock nut M8, MICRO
16
Retaining plate
17 Rubber buffer 18
Spring stainless
19 Rubber buffer 20
Washer 8.4
stainless
21 Lock nut M8
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 9
Page 3
