Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
NNOOTTEE
Take an available con rod pin (6) and push the old con rod (7) with needle bearing
and thrust washer onto the con rod pin. Note the installation instructions.
4. Take the gearbox-end of the crankshaft half (8) and repeat the procedure.

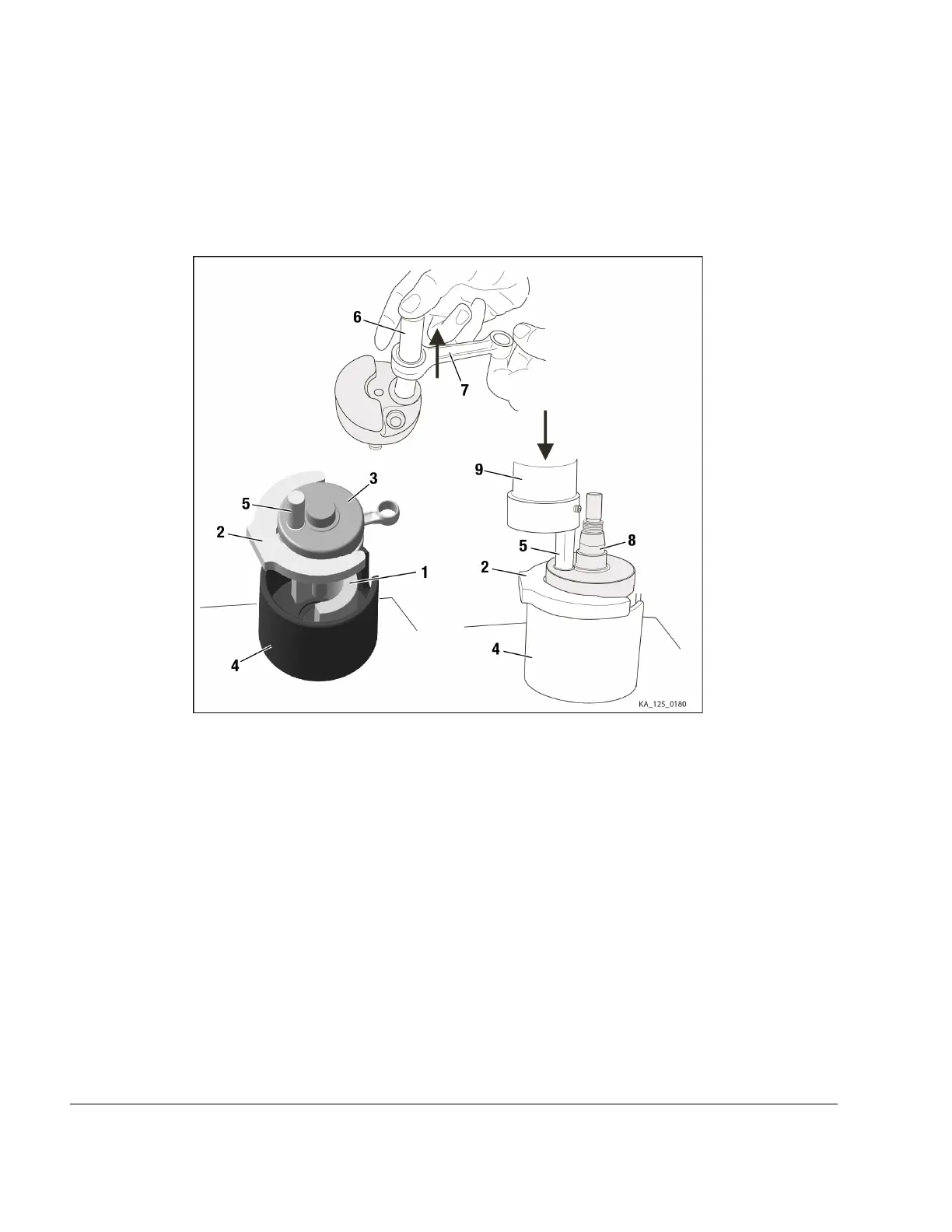

Figure 5.14: TYPICAL – Disassembling of the crankshaft
1
Thrust ring
2
Thrust plate
3 Crankshaft half 4
Bottom section of the crankshaft repair jig
5
Thrust pin
6
Con rod pin
7 Con rod 8 Drive side of the crankshaft half
9 Press
______________________________________________________
Chapter 5
Page 18
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
