COMMAND RANGING & TELEMETRY UNIT CORTEX
CRT QUANTUM USER'S MANUAL
Ref. DTU 100042
Is.Rev. 5.17
Date: Dec.
03, 2021Sept. 30, 2021
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
3.3.6.6. Probability of Bit Error
Probability of bit error versus Eb/No for various coding techniques is given by the following curves:

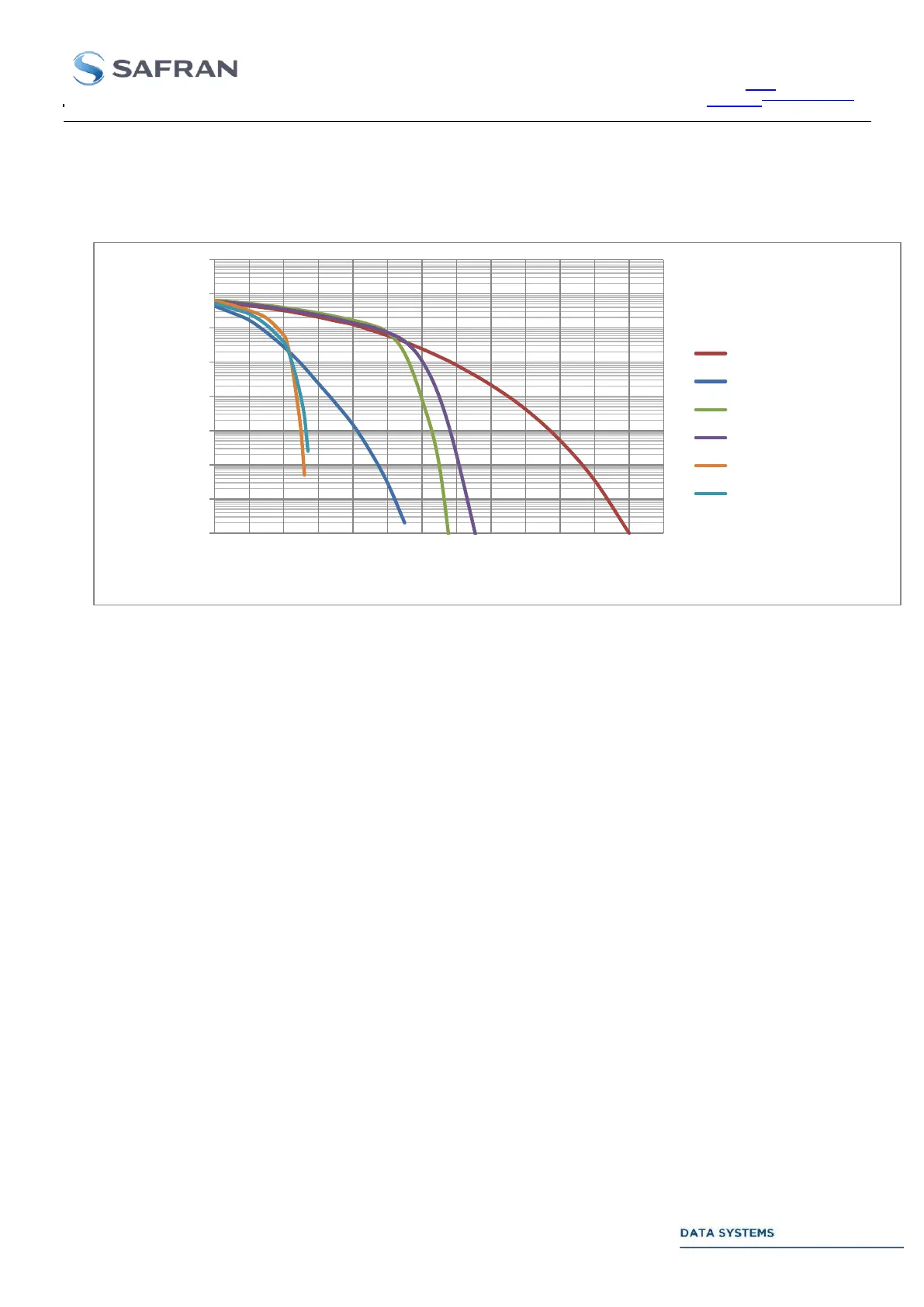

Figure 34: Probability of Bit Error versus Eb/No
The following formulas allow to calculate the theoretical Eb/No value, from the carrier to noise ratio at IF Receiver
input, for different telemetry modulation schemes (refer to Bessel tables. J
0
= carrier, J
1
= modulating signal).
3.3.6.6.1. PCM/BPSK/PM (Low or High Bandwidth)
Telemetry only:
Telemetry and ranging tones:
Normal & dwell telemetry and ranging tones:
.001E-08
.010E-08
.100E-08
1.000E-08
.001E-04
.010E-04
.100E-04
1.000E-04
.001E+00
0 1 2 3 4 5 6 7 8 9 10 11 12 13
BER
Eb/N0
No Code
Viterbi
RS(255,223) I=5
RS(255,239) I=5
Viterbi + RS(255,223) I=5
Viterbi + RS(255,239) I=5
