2.3.3. Industrial Computer Rear Panel description
2.3.3.1. Chassis 4U IS00427
2.3.3.1.1. Configuration SM01037242C: COMSAT 4U without EFC
Thanks to its integrated interconnection panel, the connection of the various signals to the user system is directly
performed ont the chassis rear panel as described in 2.3.1.1.
The computer connections (LAN, VGA, RS232) are directly available on the Industrial Computer rear panel. The
picture below lists and identifies the various connections to the computer ports, and the I/O connectors of the
Cortex CRT Quantum dedicated hardware.

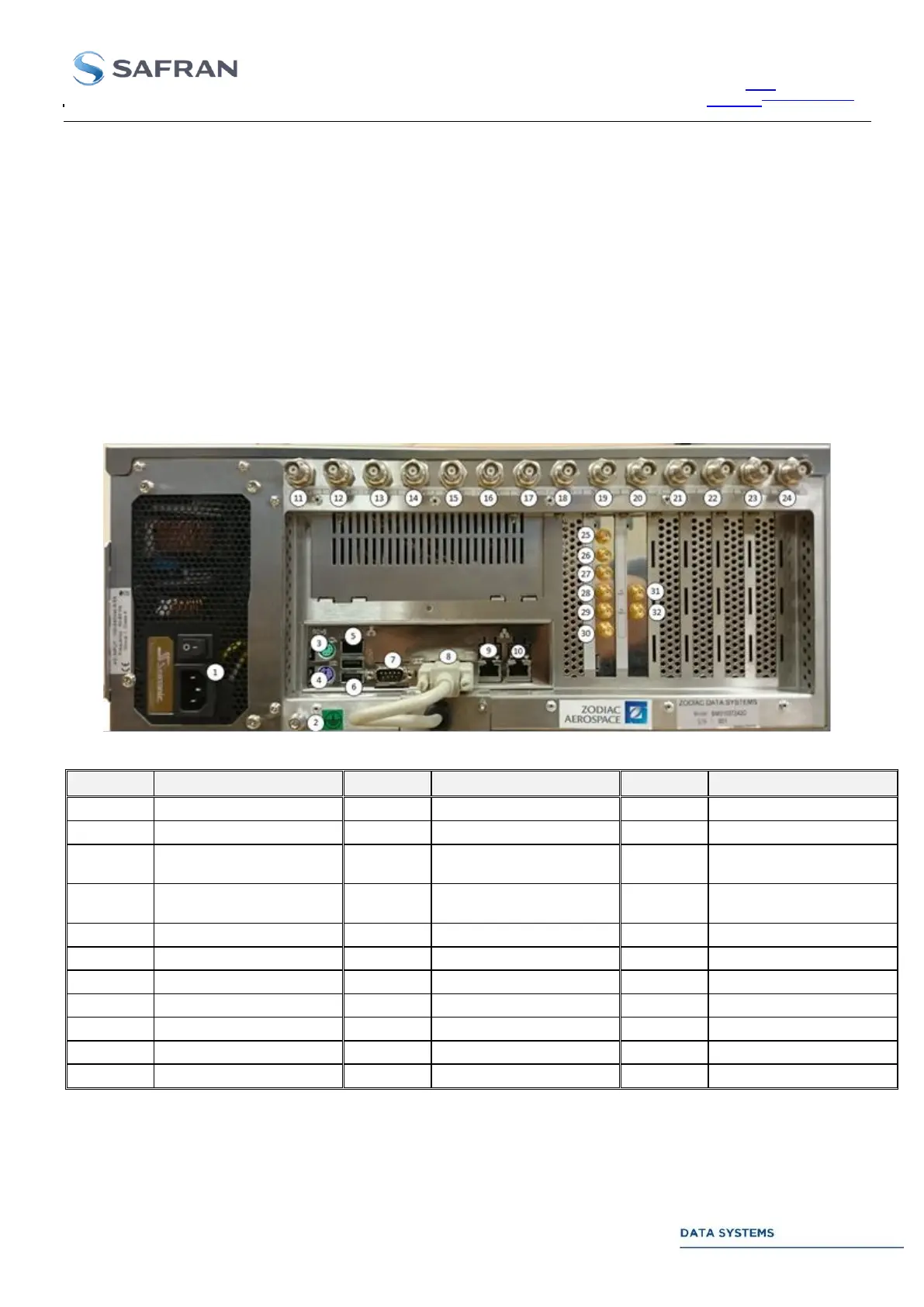

Figure 12: IS00427 Rear panel Connectors with BNC integration
Num.
Usage
Num.
Usage
Num.
Usage
1
AC Power input
12
Uplink – IF Nominal 2
23
Reference Frequency 1
2
Mechanical Ground
13
Downlink – IF Nominal 1
24
Reference Frequency 2
3
Mouse PS2 (normally
unused)
14
Downlink – IF Nominal 2
25
AGC out 1
4
Keyboard PS2 (normally
unused)
15
Downlink – IF Nominal 3
26
AGC out 2
5
IPMI – LAN
16
Uplink – IF Alternate 1
27
AGC out 2
6
USB
17
Uplink – IF Alternate 2
28
Video out 1
7
COM-1 (normally unused)
18
Downlink – IF Alternate 1
29
Video out 2
8
VGA
19
Downlink – IF Alternate 2
30
Reserved
9
NIC2 – LAN
20
Downlink – IF Alternate 3
31
Downlink – Auxiliary 1
10
NIC1 – LAN
21
1-PPS In
32
Downlink – Auxiliary 2
11
Uplink – IF Nominal 1
22
IRIG In
Table 6: IS00427 I/O Connector Panel with BNC integration
