3.4.1.2.1.2. Video + PCM Input Signals

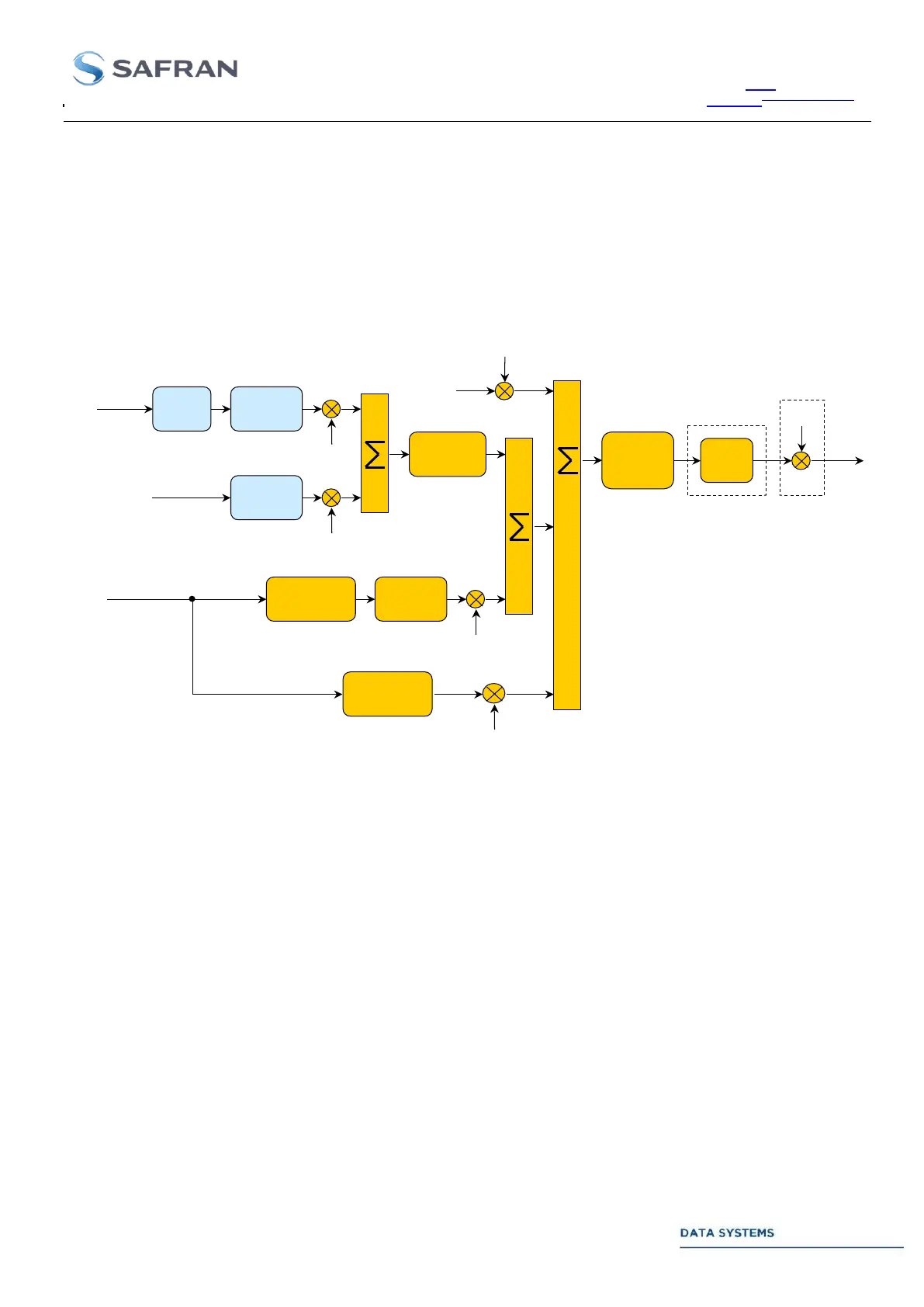

 Next figure shows an IF Modulator set to Video + PCM mode for FM or PM modulation of
the IF carrier by a low bandwidth signal (low bandwidth TCU or RAU) and a high bandwidth
PCM signal (high bandwidth TMS).
 IF modulation is limited to PM and FM.
 Matched filters are not available.
PCM
encoding
TCU data
Base-band
modulation
Mod.
index
Mod.
index
RNG sequence
Base-band
generation
Interpolation
Modulation
index
TMS data
Sub-carrier
modulation
PCM
& convolutional
encoding
Modulation
index
PM, FM
modulation
IF
filtering
(Option)
Noise
IF
outputs
Modulation
index
(Option)
Video
Input
PCM
& convolutional
encoding
Figure 53: High Bandwidth Uplink Scenario with PCM and Video Input Signals (PM, FM)
