4.1.5. 2U Chassis Front Panel Display
4.1.5.1. Overview
The front panel is composed of:
 A 16*2 display LCD screen
 An integrated LED backlit 6-button translucent silicon keypad

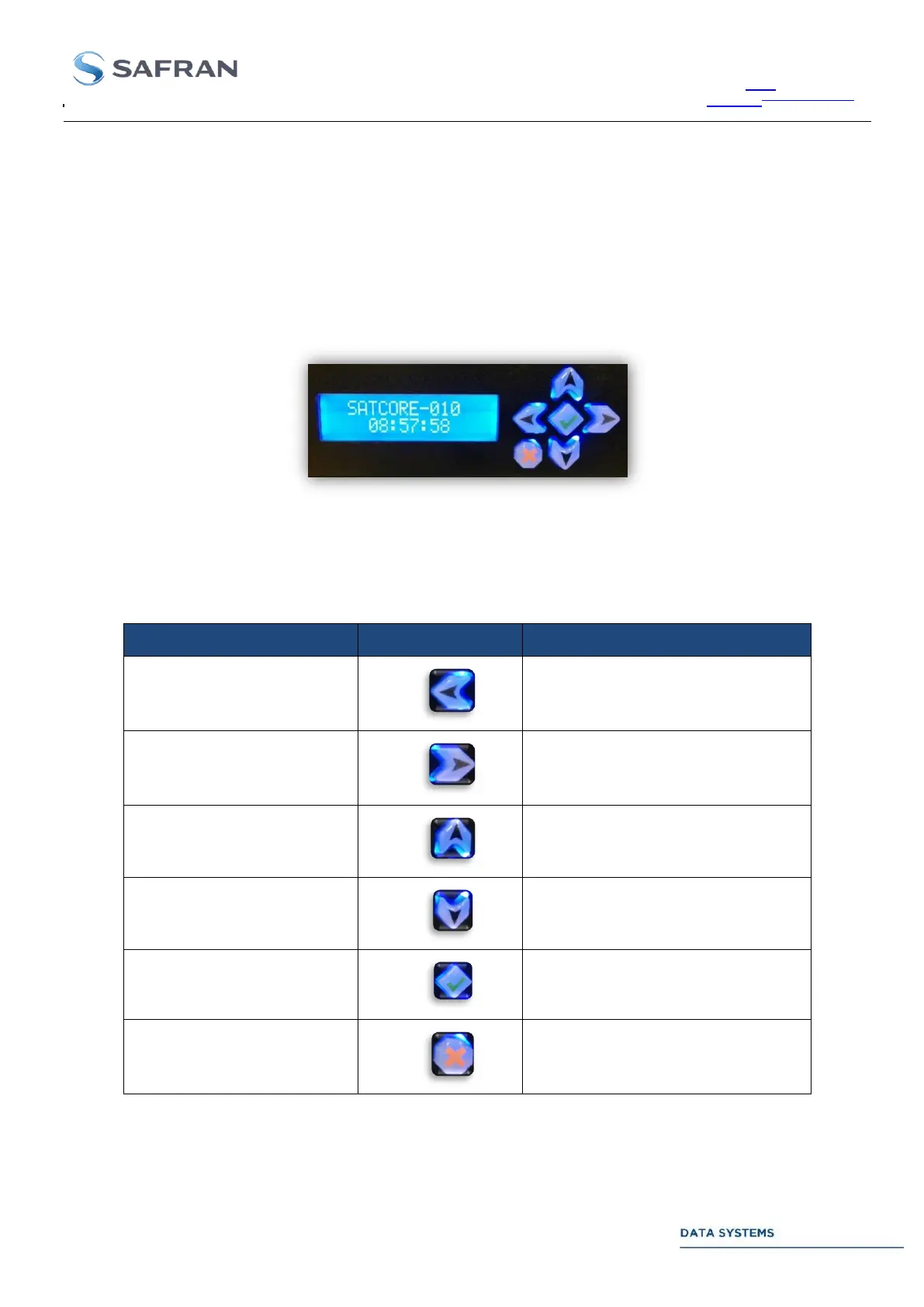

Figure 94: Front Panel display
At start-up, the screen displays the “Main” window where the first line presents the machine name, and the
second line the system time.
Name
Key
Action
Left button
Navigation in menu or move cursor
selection to the left
Right button
Navigation in menu or move cursor
selection to the right
Up button
Change value
Down button
Change value
Enter button
Enter a sub menu, start the
modification of a parameter or
accept a value change
Exit button
Return to the parent menu or cancel
a value change
