COMMAND RANGING & TELEMETRY UNIT CORTEX
CRT QUANTUM USER'S MANUAL
Ref. DTU 100042
Is.Rev. 5.17
Date: Dec. 03, 2021Sept.
30, 2021
This document is the property of Safran Data Systems.
It cannot be duplicated or distributed without expressed written consent.
1.4.2.1.2. 2U Chassis – IS00452
The PC-compatible workstation IS00452 includes (see Annex 4 for a detailed description) :
A rack-mountable industrial PC chassis (19-inch width, 3.5-inch height).
A one processor CPU board
An 16x2 display LCD screen, with an integrated LED backlit 6-button translucent silicon keypad,
Two Ethernet interfaces,
A 2.5” SSD,
USB drives at front and rear panels,
For extended storage purposes, additional 2.5” SSD drives can be proposed in option.
Redundant power supply (baseline).

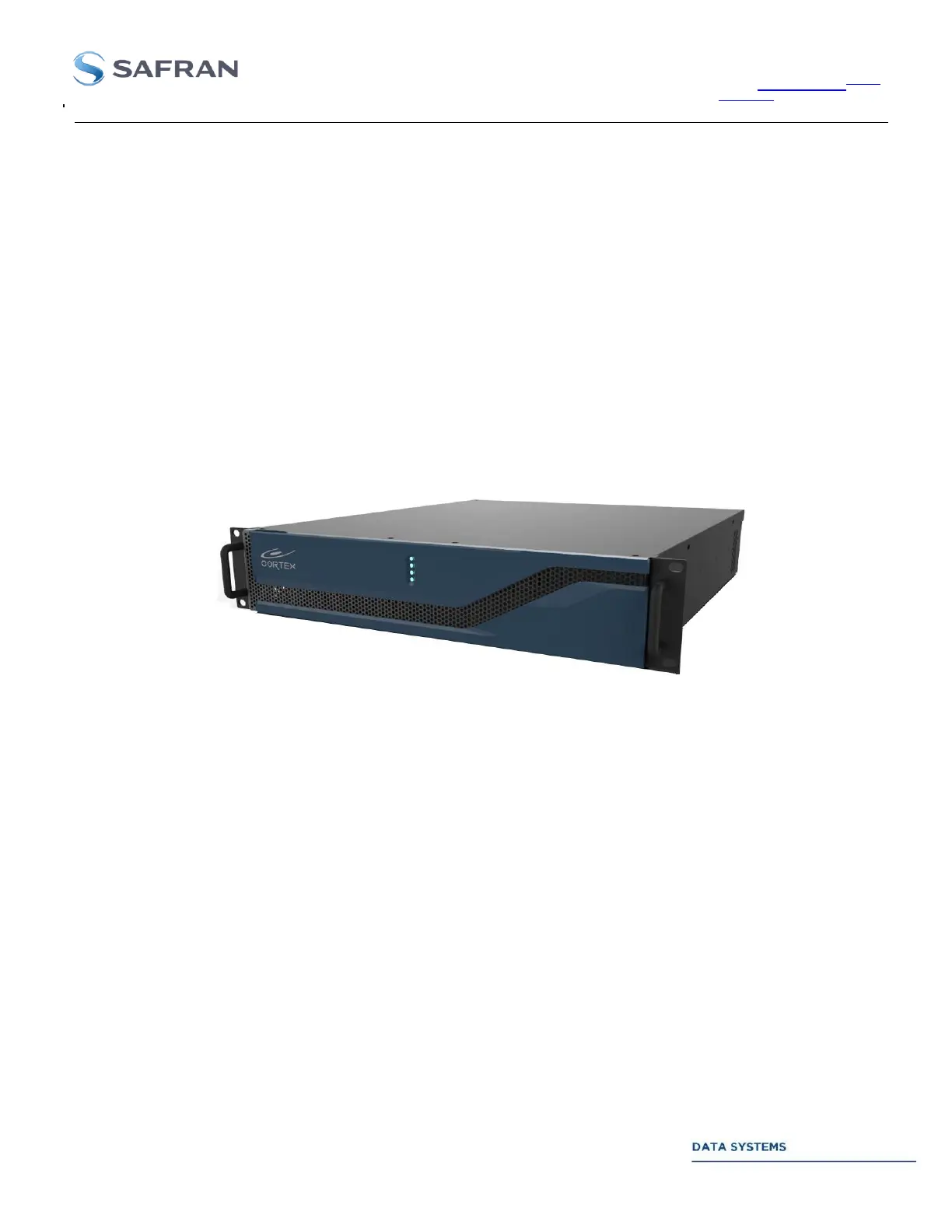

Figure 4: Chassis IS00452 Front Panel Appearance (Front panel color not contractual)
1.4.2.2. Main Signal Processing Board
1.4.2.2.1. Main Features
The Main Signal Processing board features are:
Amplification, filtering and Analog-to-Digital conversion of the IF signals (carrier from 60 to 78 MHz) on
three separate analog input stages,
Analog-to-Digital conversion of the two Auxiliary signals (baseband or IF),
IRIG-B, NASA-36 or NTP time code decoding for data time-tagging,
Transmission of the digital video signal or/and PCM data to the IF Modulator board,
5, 10 or 100 MHz clock reception and distribution to all components requiring synchronization to an
accurate reference frequency.
